TSUBAKI

Offset Link: 80 Industry Chain Size, Carbon Steel, 1" Industry Chain Pitch

Hover over image to magnify

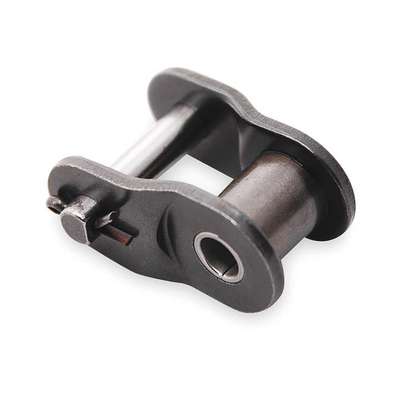

Offset Link,80,Curved Riveted
Offset Link,80,Curved Riveted

#937818-4 | Pkg Qty: 1

$26.30 pkg | $26.30 ea

Technical Specifications

Key Specifications
ANSI Chain Size
80
Material
Steel
Brand
TSUBAKI
Mfr. Part Number
80CUOL
Inside Pin Diameter
0.312 in.
Pack Quantity
1
Item
Offset Link
Shipping Weight
.15 lb.
General
Chain Construction
Cottered Pin
Outside Pin Dia.
0.312 in
Chain Link Material
Carbon Steel
Outside Pin Dia. (In.)
0.312
Chain Link Overall Width
1.398 in
Overall Width (In.)
1.398
Chain Number
80
Pin Contruction
Cottered Pin
Chain Overall Width
1 29/64 in
Pin Length (In.)
1.448
Chain Roller Dia.
0.625 in
Pin Link Plate Thickness (In.)
0.125
Connecting End to Center Line
0.789 in
Pin Outside Diameter
0.312 in
Connecting End to Center Line (In.)
0.789
Pitch (In.)
1
For Chain Number
80
Plate Height
0.819 in, 0.949 in
For Chain Style
Standard Roller Chains
Plate Thickness
0.125 in
Heavy Series
No
Rivet End to Center Line
0.659 in
Heavy Series (from Heavy)
Regular
Rivet End to Center Line (In.)
0.659
Industry Chain Pitch
1 in
Roller Chain Link Type
Curved Riveted
Industry Chain Size
80
Roller Chain Standard
ANSI
Inside Pin Dia.
0.312 in
Roller Dia. (In.)
0.625
Inside Pin Dia. (In.)
0.312
Roller Diameter
5/8 in
Length (In.)
1.000
Roller Link Plate Height (In.)
0.949
Max. Allowable Load
3,300 lb
Temp. Range
15° to 300°F
Max. Allowable Load (Lb.)
3300
Tensile Strength (Lb.)
17,640
Maximum Operating Temperature
300 °F
Width Between Roller Link Plates
0.625 in
Minimum Operating Temperature
15 °F
Width Between Roller Link Plates (In.)
0.625
Number of Strands
1

Product Description

Offset Link, Curved Riveted, Industry Chain Size 80, Carbon Steel Chain Link Material, Industry Chain Pitch 1, Chain Link Overall Width 1.398, Chain Roller Dia. 0.625, Width Between Roller Link Plates 0.625, Roller Link Plate Height 0.949, Connecting End to Center Line 0.789, Rivet End to Center Line 0.659, Pin Length 1.448, Inside Pin Dia. 0.312, Outside Pin Dia. 0.312, Pin Link Plate Thickness 0.125, Cottered Pin Type, Max. Allowable Load 3, 300 lb

Item Barcode
9378184
Offset Link,80,Curved Riveted
  Name Item Description
Grainger Dropship Grainger Dropship 1YKP1
UNSPSC CODES UNSPSC CODES 31151603
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Offset Link, 80,Curved
