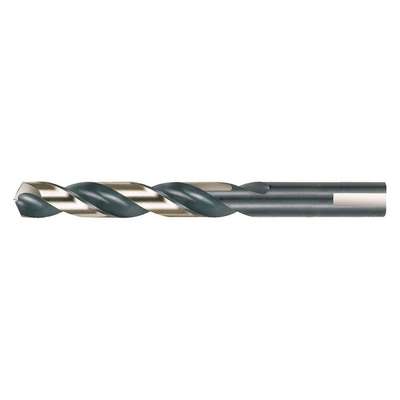

Hover over image to magnify
#937811-5 | Pkg Qty: 1
$5.82 pkg
| $5.82 ea
Technical Specifications
Key Specifications
Basic Drill Bit Material
High Speed Steel
Item
Mechanics Length Drill Bit
Brand
CLE-LINE
List Number
1875
Cutting Direction
Right
Maximum Drilling Depth
1-1/8 in.
Cutting Direction
Right Hand
Mfr. Part Number
C23844
Decimal Equivalent
0.2813
Number of Flutes
2
Depth x Diameter Ratio
4xD
Number of Pieces
1
Dimension Type
Fractional Inch
Overall Length
3-3/4 in.
Drill Bit Dimension Type
Fractional Inch
Pack Quantity
1
Drill Bit Finish
Black/Gold
Point Angle
135 deg.
Drill Bit Material
High Speed Steel
Point Type
Split Point
Drill Bit Point Angle
135 deg.
Series
1875R
Drill Bit Size
9/32 in.
Shank Diameter
17/64 in.
Drill Point Length
0.0582 in.
Shank Length
1-1/2 in.
Flute Length
2-1/4 in.
Shank Type
Straight with Three Flats
Flute Type
Spiral
Shipping Weight
.04 lb.
Grade
Heavy Duty
Spiral Direction
Right Hand
Helix Angle
28
Type
Standard
General
Application
For Alloy, Carbon And Tool Steels And Cast Iron
Finish - Machining
Black Oxide
Coolant Fed
Non-Coolant Through
Material - Machining
High Speed Steel
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, P
Drill Bit Point Type
Split Point
Shank Dia.
17/64 in
Drill Diameter Tolerance
+0.0000 in /-0.0010 in
Shank Type - Machining
Straight with Three Flats
Drill Length Class
Mechanics Length
Standards
ASME B94.11M
Product Description
The black-and-gold-oxide finish on these drill bits lubricates the drill bit and provides some resistance to wear and rust. The bits are made from high-speed steel, which provides some flexibility and absorbs some shock and vibration.
Documents
Item Barcode
Mechanics Length Drill,9/32",
Name | Item | Description | |
---|---|---|---|
![]() |
Grainger Dropship | 4GB81 | |
![]() |
UNSPSC CODES | 20111614 | |
![]() |
VMRS (ATA) CODES | 053-006-009 | Mechanics Length Drill, |
