SCHNEIDER ELECTRIC

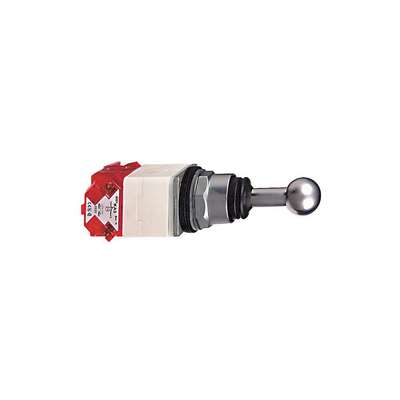

Schneider Electric Joystick Operator, Action: Momentary, Contact Form: 2NO, Contact Rating: 10A @ 250V AC

Hover over image to magnify
Joystick Operator,30mm,2 Dir,
Joystick Operator,30mm,2 Dir,

#937797 | Pkg Qty: 1

$396.69 pkg | $396.69 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action
Momentary
Material of Construction
Metal
Bezel
Chromium Plated Metal
Mfr. Part Number
9001K71H7
Brand
SCHNEIDER ELECTRIC
NEMA Contact Rating Designation
A600/Q600
Contact Form
2NO
NEMA Rating
1, 12, 13, 2, 3, 3R, 4
Contact Rating
10A @ 250 VAC
Number of Directions
2
Direction of Operation
Vertical
Position
Spring Return to Center, Vertical Operation
IP Rating
66
Shipping Weight
.65 lb.
Joystick Material
Metal
Size
30 mm
Latching / Non-Latching
Non-Latching
General
Standards
CE, CSA, UL

Product Description

Great for applications where only 1 circuit is to be energized at a time. The 3-position operator has a center off position. Momentary contact operators are spring return to the center position. Maintained operators remain in each position and must be reset manually. Latching operators cannot be operated until the latch button in center of handle is pressed. RoHS compliant and ABS Certified.

Item Barcode
9377970
Joystick Operator,30mm,2 Dir,
 NameItemDescription
Grainger DropshipGrainger Dropship45C363
UNSPSC CODESUNSPSC CODES39122227
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009
