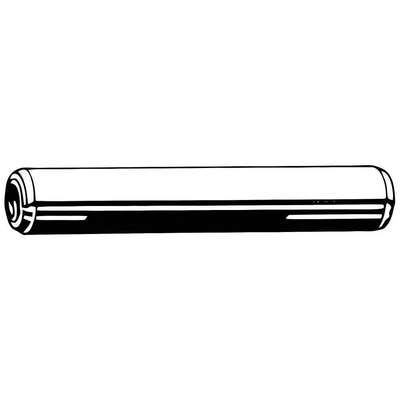

Spring Pin, Coiled, Steel, Spring Steel, Plain, 1/8" Outside Dia., 7/8" Fastener Length
#937758-5 | Pkg Qty: 100
Technical Specifications
Key Specifications
General
Product Description
Spring Pin, System of Measurement Inch, Spring Pin Type Coiled, Basic Material Steel, Material Grade Spring Steel, Fastener Finish Plain, Outside Dia. 1/8, Fastener Length 7/8, Standards ASME B18.8.2, Nominal Diameter 1/8, Chamfer Diameter 0.121, Chamfer Length Reference 0.044, Actual Dia. (Min.-Max) 0.131-0.139, Fits Hole Dia. (Min.-Max.) 0.124-0.129, Double Shear Strength (Lbs.) 825 lb, PK 100
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 41MA79 | |
|
UNSPSC CODES | 31163201 | |
|
VMRS (ATA) CODES | 053-006-009 |
