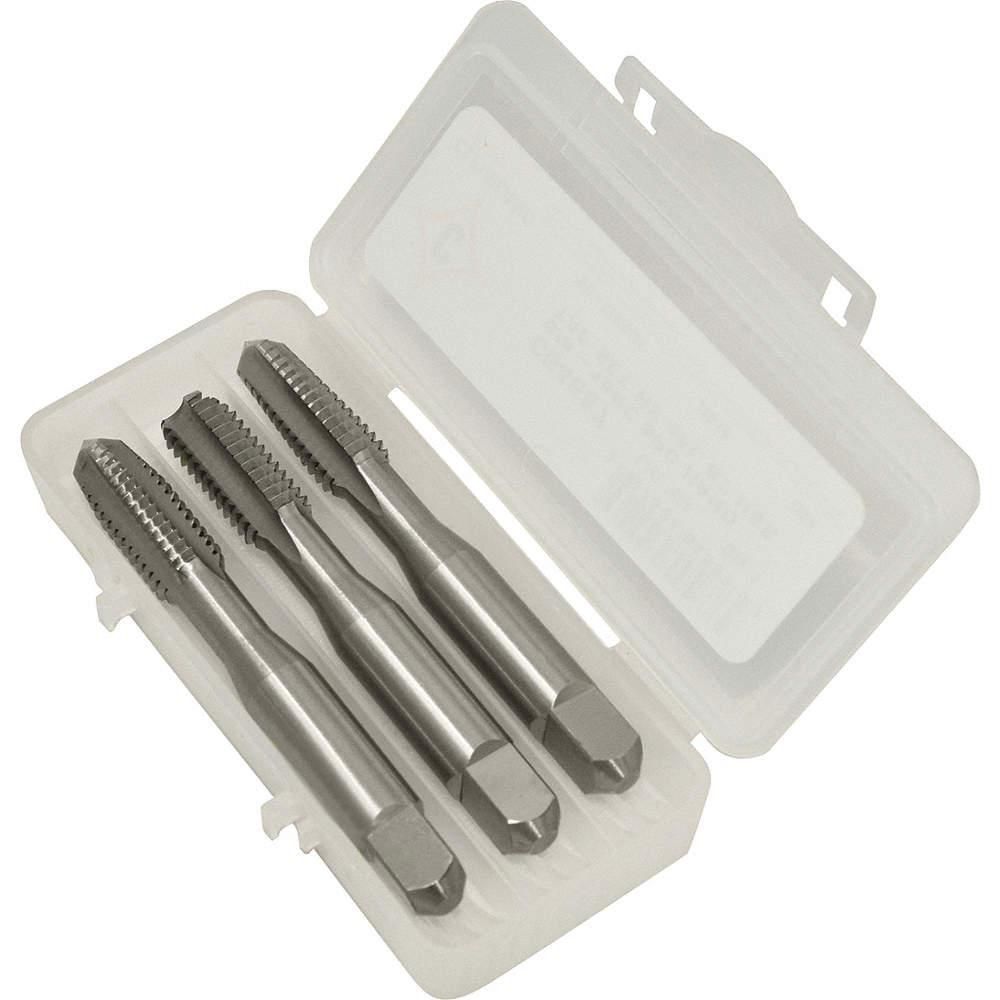

Three Piece Tap Kit, Tap Thread Size 1"-14, High Speed Steel, Bright (Uncoated)
Hover over image to magnify
#937751-4 | Pkg Qty: 1
$449.05 pkg | $449.05 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CLEVELAND
Shank Diameter
51/64 in.
Cutting Direction
Right
Shank Length
2-5/8 in. in.
Cutting Direction
Right Hand
Shipping Weight
.2 lb.
Drill Size
5 mm
Spiral Direction
Neutral
Item
Three Piece Tap Kit
Tap Chamfer
Bottoming, Plug, Taper
List Number
1004
Tap Dimension Type
Inch
Material
High Speed Steel
Tap Finish
Bright (Uncoated)
Mfr. Part Number
C54936
Tap Material
High Speed Steel
Number of Flutes
4
Tap Style
Straight Flute (Hand)
Number of Pieces
3
Tap Thread Size
1 in.-14
Overall Length
5-1/8 in.
Tap Thread Type
UNS
Pack Quantity
1
Thread Direction
Right Hand
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Thread Length
2-1/2 in.
Series
1004
General
Class of Fit
3B
Shank Dia.
51/64 in
Coolant Fed
Non-Coolant Through
Standards
USCTI Table 302A
Extended Shank
No
Tap Grouping
Tap Set
Features
Taper-Plug-Bottoming
Tap Shank Standard
USCTI Table 302A
Includes
(1) Bottoming Tap, (1) Plug Tap, (1) Taper Tap
Tap Type
Straight Flute
Measurement System
Fractional Inch
Thread Limit
2B
Number Of Taps
3
Thread Standard
UNS
Primary Material Application ISO Code
K, M, N, P
Threads per Inch
14
Product Description
The bright finish on these taps provides a smooth, polished surface. High-speed steel taps provide good wear resistance in general purpose tapping applications in a range of materials, including ferrous and non-ferrous metals.
Item Barcode
Three Piece Tap Kit,1-14,Hss
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 435P56 | |
 | UNSPSC CODES | 27112806 | |
 | VMRS (ATA) CODES | 053-006-009 |
