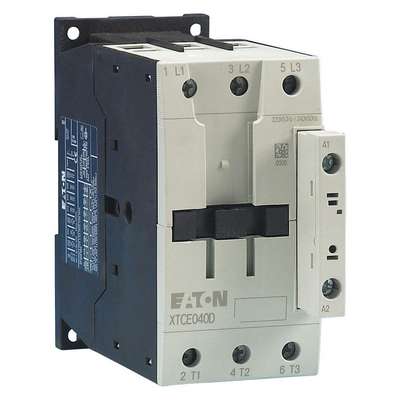

24V AC IEC Magnetic Contactor; No. of Poles 3, Reversing: No, 40 A Full Load Amps-Inductive

Hover over image to magnify
Iec Magnetic Contactor,24VAC,
PI_Asset_1984203
PI_Asset_1988026
Iec Magnetic Contactor,24VAC,
PI_Asset_1984203
PI_Asset_1988026

#937714-4 | Pkg Qty: 1

$313.92 pkg | $313.92 ea
Item Number 937714-4
Scanner Description Iec Magnetic Contactor,24VAC,
Inventory Status Drop Ship Item
Weight 2.07 lb
Brand EATON

Technical Specifications

Action
Nonreversing
Hz
50/60
Brand
EATON
Number of Poles
3
Coil Volts
24 VAC
Pack Quantity
1
Depth
5.2 in.
Reversing
No
Enclosure NEMA Rating
No Enclosure
Series
Frame D
Enclosure Type
Open
Standards
UL/CE/CSA/CCC/ATEX/IEC EN 60947
Height
2.17 in.
Width
2.17 in.

Product Description

IEC Magnetic Contactor, Full Load Amps-Inductive 40 A, Full Load Amps-Resistive 60 A, Number of Poles 3, Coil Volts 24V AC, Reversing No, HP @ 1 Phase - 120V 3 hp, HP @ 1 Phase - 240V 7 1/2 hp, HP @ 3 Phase - 208V 10 hp, HP @ 3 Phase - 240V 15 hp, HP @ 3 Phase - 480V 30 hp, HP @ 3 Phase - 575V 40 hp, Enclosure NEMA Rating No Enclosure, Hz 50/60, Height 2.17, Width 2.17, Depth 5.2, Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947, Frame / Series / Class / Code Frame D

Item Barcode
9377144
  Name Item Description
Grainger Dropship Grainger Dropship 4TZA7
UNSPSC CODES UNSPSC CODES 39121529
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 IEC Magnetic Contactor,
