Home All Products Pneumatics Air Compressors And Vacuum Pumps Positive Displacement Blowers SKU: 937703-9
SPEEDAIRE

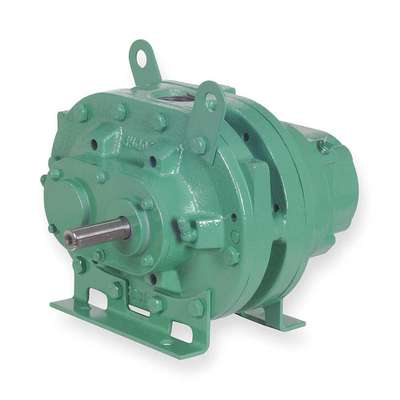

Positive Displacement Blower: Horizontal Right Hand, 2" (F)NPT, 0.72 cu"/rev Displacement

Hover over image to magnify
Blower/Vacuum Pump,0.06 Cu Ft/
Blower/Vacuum Pump,0.06 Cu Ft/

#937703-9 | Pkg Qty: 1

$2,023.99 pkg | $2,023.99 ea
This item requires special shipping, additional charges may apply.

Technical Specifications

Key Specifications
Brand
SPEEDAIRE
Pack Quantity
1
General
Air Flow Range
57 cfm – 186 cfm
Minimum Air Flow
57 cfm
Blower Configuration
Horizontal Right Hand Configuration (H-RHC)
Minimum Power Required
1.6 hp
CFM Range
57 to 186
Minimum Speed
1,091 RPM
Configuration - Product Description
Horizontal Right Hand
Outlet Dia.
2 in (F)NPT
Displacement (Cu. Ft/Rev)
0.060
Outlet Gender
Female
Inlet Dia.
2 in (F)NPT
RPM Range
1091 to 3600
Inlet Gender
Female
Shaft Dia.
0.75 in
Keyway
3/16 in x 1 7/16 in
Shaft Diameter
3/4 in
Keyway Length
1 7/16 in
Shaft Size
3/4 in D x 2 in L
Maximum Power Required
12.3 hp
Speed Range
1,091 RPM – 3,600 RPM

Product Description

Drop-in replacement for various roots-type blowers and vacuum pumps. For use in various industrial applications such as pneumatic conveying, wastewater treatment, surface cleaning, and dairy milking. Handles continuous loads. Alloy steel timing gears assure nonslip timing. High-strength drive shaft provides greater blower durability and installation flexibility. High-strength cylinder with heat-dissipating fins for reduced noise and vibration. High-temperature seals provide leak-free operation in severe-duty applications.

Documents

Speedaire Positive Displacement Blower OIPM
Item Barcode
9377039
Blower/Vacuum Pump,0.06 Cu Ft/
  Name Item Description
Grainger Dropship Grainger Dropship 2EPP4
UNSPSC CODES UNSPSC CODES 40151502
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Blower/ Vacuum Pump,
