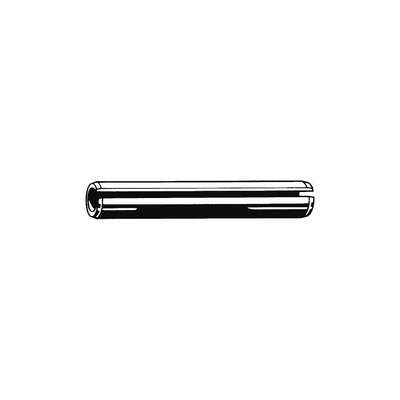

Spring Pin: Slotted, Steel, Spring Steel, Plain, 7/32 in Outside Dia., 1 1/4 in Fastener Lg, 25 PK
#937698-6 | Pkg Qty: 25
Technical Specifications
Key Specifications
General
Product Description
Spring Pin, System of Measurement Inch, Spring Pin Type Slotted, Basic Material Steel, Material Grade Spring Steel, Fastener Finish Plain, Outside Dia. 7/32, Fastener Length 1 1/4, Standards ASME B18.8.2, Nominal Diameter 7/32, Chamfer Diameter 0.214, Wall Thickness 0.048, Chamfer Length (Min.) 0.011, Chamfer Length (Max.) 0.065, Actual Dia. (Min.-Max) 0.226-0.232, Fits Hole Dia. (Min.-Max.) 0.219-0.224, Double Shear Strength (Lbs.) 5, 850 lb, PK 25
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 41LP72 | |
|
UNSPSC CODES | 31163201 | |
|
VMRS (ATA) CODES | 053-006-009 |
