TSUBAKI

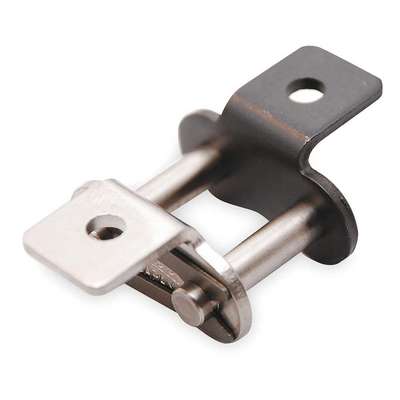

Attachment Link: 80 Industry Chain Size, Carbon Steel, 1" Industry Chain Pitch, K-1

Hover over image to magnify
Attachment Link,80,K-1
Attachment Link,80,K-1

#937681-7 | Pkg Qty: 1

$14.97 pkg | $14.97 ea

Technical Specifications

Key Specifications
ANSI Chain Size
80
Material
Steel
Brand
TSUBAKI
Mfr. Part Number
80K1CL
Finish
Plain
Pack Quantity
1
Inside Pin Diameter
0.312 in.
Shipping Weight
.18 lb.
Item
Attachment Link
General
Attachment Number
K-1
Number of Strands
Single
Centerline to Attachment End
0.758 in
Number of Tab Holes
1
Centerline to Hole Center
0.64 in
Outside Pin Dia.
0.312 in
Chain Link Material
Carbon Steel
Outside Pin Dia. (In.)
0.312
Chain Link Overall Width
1.398 in
Overall Width (In.)
1.398
Chain Number
80
Pin Contruction
Cottered Pin
Chain Overall Width
1.398 in
Pin Length (In.)
1.398
Chain Roller Dia.
0.625 in
Pin Link Plate Thickness (In.)
0.125
Connecting End to Center Line
0.758 in
Pitch (In.)
1
Connecting End to Center Line (In.)
0.758
Plate Height
0.949 in
Extended Pin Diameter
0.312 in
Plate Thickness
0.625 in
For Chain Number
80
Rivet End to Center Line
0.64 in
For Chain Style
Standard Roller Chains
Rivet End to Center Line (In.)
0.640
Industry Chain Pitch
1 in
Roller Chain Link Type
K-1
Industry Chain Size
80
Roller Dia. (In.)
0.625
Inside Pin Dia.
0.312 in
Roller Diameter
5/8 in
Inside Pin Dia. (In.)
0.312
Roller Link Plate Height (In.)
0.949
Length (In.)
1.000
Temp. Range
15° to 300°F
Max. Allowable Load
2,400 lb
Tensile Strength (Lb.)
15,400
Max. Allowable Load (Lb.)
2400
Width Between Roller Link Plates
0.625 in
Maximum Operating Temperature
300 °F
Width Between Roller Link Plates (In.)
0.625
Minimum Operating Temperature
15 °F

Product Description

Attachment Link, K-1, Industry Chain Size 80, Carbon Steel Chain Link Material, Industry Chain Pitch 1, Chain Link Overall Width 1.398, Chain Roller Dia. 0.625, Width Between Roller Link Plates 0.625, Roller Link Plate Height 0.949, Connecting End to Center Line 0.758, Rivet End to Center Line 0.64, Pin Length 1.398, Inside Pin Dia. 0.312, Outside Pin Dia. 0.312, Pin Link Plate Thickness 0.125, Cottered Pin Type, Max. Allowable Load 2, 400 lb
