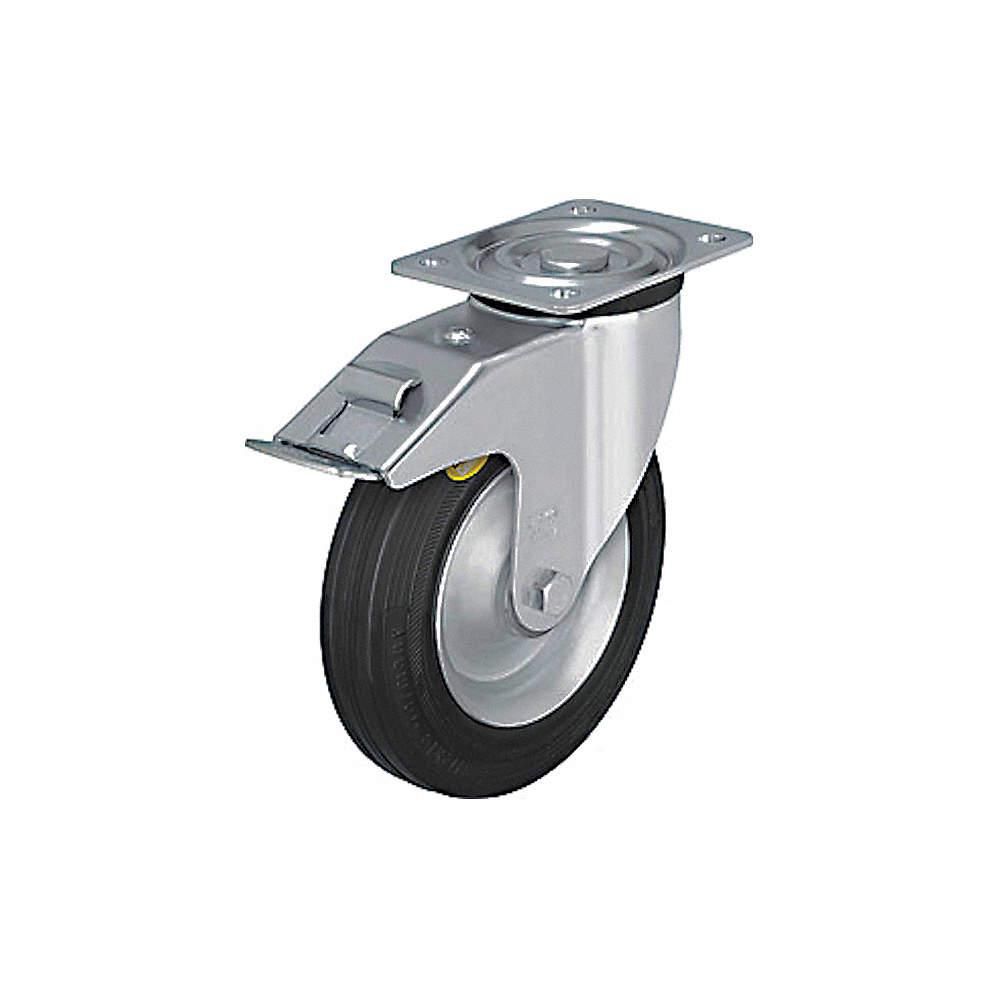

Light- Medium Duty, Swivel Plate Caster with Flat-Free Wheels; 495 lb. Load Rating, 6-5/16" Wheel Dia.

Hover over image to magnify
Plate Caster w/ Flat-Free,
Plate Caster w/ Flat-Free,

#937631-9 | Pkg Qty: 1

$96.13 pkg | $96.13 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
495 lb.
Caster Brake Included
Yes
Mfr. Part Number
L-RD 162R-FI
Caster Brake Type
Total Lock Brake
Mounting Bolt Diameter
7/16 in.
Caster Load Rating Range
Light- Medium Duty
Mounting Height
7-11/16 in.
Caster Plate Hole Pattern
C
Non-Marking
No
Caster Plate Size
4-5/16 in. x 5-1/2 in.
Number of Mounting Holes
4
Caster Raceway
Double Ball
Number of Wheels
1
Caster Wheel Bearings
Roller
Outside Bolt Hole Spacing
3-5/32 in. x 4-9/64 in.
Caster Wheel/Tread Material
Rubber
Package Quantity
1
Caster/Wheel Tread
Ribbed
Plate Caster Sub-Type
Swivel
Durometer
65 Shore A
Shipping Weight
6.76 lb.
Frame Finish
Zinc Plated
Swivel Construction
Kingpin
Frame Material
Steel
Wheel Color
Black
Includes Thread Guards
No
Wheel Diameter
6-5/16 in.
Inside Bolt Hole Spacing
2-15/16 in. x 4-1/8 in.
Wheel Width
1-5/8 in.
Item
Plate Caster with Flat-Free Wheels
Wheel/Tread Hardness Rating
Soft
General
Caster Frame Material
Steel
Mounting Plate Size
4-5/16 in x 5-1/2 in
Caster Mounting Type
Plate
Mounting Plate Size (Bolt Hole Pattern)
5-1/2 in x 4-5/16 in (C)
Caster Product Group
Swivel Caster with Total Lock
Operating Temperature Range
-15° to 160°F
Caster Temp. Range Available
Yes
Swivel Raceway Type
Double Ball
Hub Materials
Steel
Tire Rim Dia.
4 in
Hub Position
Centered
Tire Thickness
1 3/16 in
Hub Width
2-3/8"
Wheel Bearing Type
Roller
Load Rating Range
300 to 999 lb
Wheel Dia.
6 5/16 in
Mounting Bolt Dia.
7/16 in
Wheel/Tread Hardness
65 Shore A
Mounting Plate Bolt Hole Pattern
C
Wheel/Tread Material
Rubber

Product Description

Heavy-duty plate casters with flat-free wheels can withstand heavier loads than medium-duty plate casters with pneumatic, semipneumatic, or flat-free wheels. Their solid flat-free wheels absorb shock and vibration for a cushioned ride and will not go flat if punctured. The flat-free wheels have a hard rubber core and are heavier than pneumatic or semipneumatic wheels. They are also nonmarking and absorb more shock than semipneumatic wheels. Heavy-duty plate casters with flat-free wheels are suitable for use on heavy carts or trucks in warehouses, transportation facilities, manufacturing sites, and other industrial locations where they will be rolling over rough or uneven terrain and may encounter nails, metal shavings, rocks, and other sharp debris.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
