DAYTON

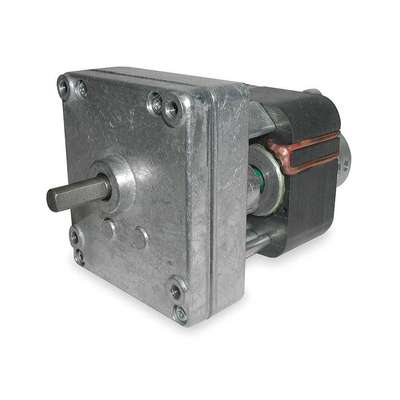

Dayton AC Gearmotor: 6.6 RPM Nameplate RPM, 25 in-lb Max. Torque, Single, CW, All Angle
Hover over image to magnify
#937570-1 | Pkg Qty: 1
$116.78 pkg | $116.78 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL/CSA
Motor Type
Shaded Pole
Bearings
Porous Bronze on Gear Case and Motor
Mounting
All Position
Brand
DAYTON
Nameplate RPM
6.6 RPM
Dimension A
3.89 in.
No Load RPM
6.9 RPM
Dimension B
1.57 in.
Pack Quantity
1
Enclosure
Open
Phase
1
Full Load Amps
0.38
Rotation
CW
Gear Type
Spur
Seals
Gasketed Gear Case, Lip Type on Output Shaft
Gears
All Spur Gears
Shaft Orientation
Parallel
Housing
Die Cast Zinc
Shipping Weight
3.5 lb.
Hz
60 Hz
Thermal Protection
None
Insulation Class
B
Type
Parallel Shaft
Length Less Shaft
4 in.
Voltage
115
Lubrication
Grease Filled
Voltage Rating
115
Mfr. Part Number
1MBF5
Warranty
2ACC6
General
Application
Amusement Devices, Conveyor Toasters, Displays, Food and Restaurant Equipment, ingredient Motors, Pumps, Security Systems, Valve Actuators, Vending, Water Softeners, X-ray Equipment
Gearmotor Shaft Orientation
Parallel
Full Load Torque
25.0 in.-lb.
Gearmotor Shaft Type
Single
Gear Case
Zinc Die Cast
Gearmotor Type
AC Gearmotor
Gear Case Material
Die Cast Zinc
Gearmotor Voltage
115V AC
Gearmotor Brake Type
None
Input HP
1/229 hp
Gearmotor Enclosure
Open
Max. Ambient Temp.
40 °C
Gearmotor Mounting Position
All Angle
Max. Torque
25 in-lb
Gearmotor Phase
1
Overhung Load
41 lb
Gearmotor RPM Range
0 to 15
RPM Range
0 to 15
Gearmotor Rotation
CW
Standards
UL Recognized/CSA
Product Description
115VAC Shaded Pole Parallel Shaft Gearmotors
- Gearcase: die-cast zinc Lubrication: grease filled Gears: heat-treated cut steel and acetal Bearings: porous bronze sleeve on both case and motor Mounting: all-position 60 Hz Rotation: clockwise facing output shaft Thermal protection: impedance UL Recognized
Item Barcode
Ac Gearmotor,6.6 Rpm,Open,115V
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1mbf5 | |
 | UNSPSC CODES | 20101617 | |
 | VMRS (ATA) CODES | 053-006-009 |
