BUSSMANN

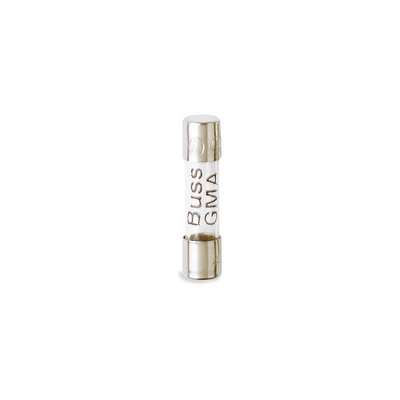

Bussmann Fuse: 150 mA, 250V AC, 100A at 250V AC/10kA at 125V AC, 20mm L x 5mm dia Fuse Size, 5 PK

Hover over image to magnify
Fuse,150mA,Glass,Gmd Series,PK5
Fuse,150mA,Glass,Gmd Series,PK5

#937545-6 | Pkg Qty: 5

$42.05 pkg | $8.41 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
250 VAC
Indicating
Yes
Amperage
150 mA
Indicating / Nonindicating
Indicating
Body Material
Glass
Interrupt Rating
100A at 250 VAC, 10kA at 125 VAC
Body Style
Cylindrical
Length
20 mm
Brand
BUSSMANN
Mfr. Part Number
GMD-150-R
DC Voltage Rating
Not Rated
Package Quantity
5
Diameter
5 mm
Rejection / Nonrejection
Nonrejection
Element
Single
Series
GMD
Functionally Equal To
Littelfuse 239, Mersen/Ferraz Shawmut GSC
Shipping Weight
.1 lb.
Fuse Amps
150mA
Speed
Time Delay
Fuse Speed
Time Delay
Type
Electronic
Fuse Voltage Rating
250 VAC
Voltage Rating
250 VAC
In Line Fuseholder
E
General
Compatible Fuse Block Series
HTB
Fuse Size
20mm L x 5mm dia
Equivalent Series
239, GMD, GSC
Standards
CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
Fits Fuse Block Style
Nonrejection
Visual Indication
Glass Fuse

Product Description

These cartridge-style, time-delay glass fuses tolerate temporary inrush currents without opening, which prevents nuisance-blowing from equipment startups. Also called slow-blow glass fuses, they open to disconnect an electrical circuit when exposed to sustained loads and short circuits.

Glass fuses provide overcurrent protection for low-current circuits in appliances, electronics circuit boards, and lighting fixtures. They typically have a voltage rating of 300VAC or less and are used for applications where they won't be exposed to high heat that could shatter the glass. Their small, cylindrical body is see-through for checking whether the fuse wire is intact or has melted.
