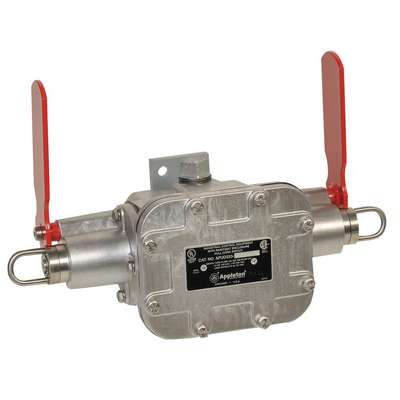

Appleton Electric Emergency Cable Pull Switch, Maintained, Double End, 15A @ 120/240/480/600V AC AC Contact Rating
Hover over image to magnify
#937390-8 | Pkg Qty: 1
$2,064.94 pkg
| $2,064.94 ea
Technical Specifications
Key Specifications
AC Contact Rating
15A @ 120/240/480/600 VAC
Mfr. Part Number
AFU0333-11
Action
A
Mounting Style
Double End
Brand
APPLETON ELECTRIC
NEMA Rating
12, 3, 4, 4X
Cable Connection Location
Left and Right
Operating Force
15 lb.
Case Material
Cast Aluminum
Operating Position
Double End
Contact Form
1NC-DB/1NO
Pack Quantity
1
Contact Type
NO/NC-DB
Shipping Weight
15.31 lb.
DC Contact Rating
0.4A @ 230 VDC, 0.8A @ 115 VDC
Standards
UL 1203, UL 508, UL 698
Depth
7.7 in.
Switch Function
Maintained
Environmental Protection
NEMA 3, 4, 4X, 12
Type
Emergency (Maintained)
IP Rating
Not Rated
Width
11 in.
Indicator
Flag Arm
Wiring Entry
Two 1 in. Conduit Openings
Length
16.7 in.
General
For Use With
Conveyor Control Switch
Switching Ability
Dual Cable
HP
0.5 HP @ 125VAC, 1 HP @ 250VAC
Thermal Amperage
15 A
Reset
Actuator
Product Description
This cable pull switch is designed to help users signal an emergency stop or normal stop where alarm or computer interface capabilities are needed. It features cast-aluminum housing and a torsion spring for positive flag arm actuation. Use in steel mills, automotive assembly lines, warehouses, loading docks, and various industrial processes.
Item Barcode
Cabl Pull Swtch,15A,Dobl End,
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 10C688 | |
|
UNSPSC CODES | 39122209 | |
|
VMRS (ATA) CODES | 053-006-009 |
