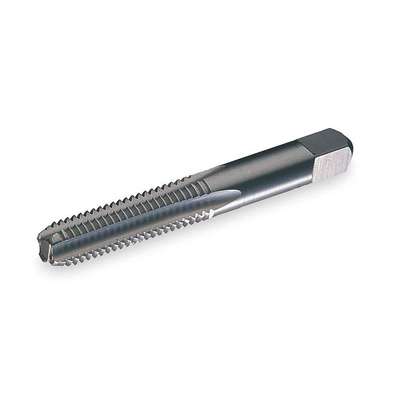

Hover over image to magnify
#937332-2 | Pkg Qty: 1
$24.95 pkg
| $24.95 ea
Technical Specifications
Key Specifications
Application
Use in. Steel Less Than 30 Rc, Stainless Steel Less Than 30 Rc, Non-ferrous Materials and Cast and Ductile Iron
Shank Length
1-23/32 in. in.
Brand
WIDIA GTD
Size
1/2 in.
Cutting Direction
Left Hand
Spiral Direction
Left Hand
Dimension Type
Decimal Inch
Square Size
0.275 in.
Flutes
4
Standards
ANSI
Grade
GP6520
Subgroup | Tap
Straight Flute
Insert Material
High Speed Steel
Tap Chamfer
Plug
Item
Straight Flute Tap
Tap Dimension Type
Inch
List Number
5305L/5303L
Tap Finish
Bright (Uncoated)
Material
High Speed Steel
Tap Material
High Speed Steel
Mfr. Part Number
14286
Tap Size
1/2 in.
Number of Flutes
4
Tap Style
Straight Flute (Hand)
Number of Pieces
1
Tap Thread Size
1/2 in.-13
Overall Length
3-3/8 in.
Tap Thread Type
UNC
Pack Quantity
1
Thread Direction
Left Hand
Pitch
13
Thread Length
1-21/32 in.
Pitch Diameter Limits
H3
Thread Type
UNC
Primary Material Application
Steel
Tolerance
3B
Series
5305L/5303L
Type
Plug
Shank Diameter
23/64 in.
General
55% Thread Drill Size
11.30 mm
Shank Dia.
23/64 in
65% Thread Drill Size
11.00 mm
Shank Type - Machining
Straight
75% Thread Drill Size
27/64 in
Tap Grouping
Individual
Coolant Fed
Non-Coolant Through
Tap Length Standard
ANSI
Extended Neck
Yes
Tap Shank Standard
ANSI
Measurement System
Fractional Inch
Thread Limit
H3
Primary Material Application ISO Code
P
Thread Limit / Class of Fit
H3
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Thread Standard
UNC
Secondary Material Application ISO Code
K, M, N
Threads per Inch
13
Product Description
The left-hand taps in these sets are used to create internal threads in holes in applications where left-hand fasteners will be installed in the holes.
