#937208-2 | Pkg Qty: 1
$13.56 pkg
| $13.56 ea
Technical Specifications
Key Specifications
Brand
CLE-LINE
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
Cobalt
Cutting Direction
Right
List Number
1891
Decimal Equivalent
0.3937
Maximum Drilling Depth
1-9/16 in.
Depth x Diameter Ratio
4xD
Mfr. Part Number
C18990
Drill Bit Dimension Type
Metric
Number of Flutes
2
Drill Bit Finish
Straw/Bronze
Overall Length
133 mm
Drill Bit Material
Cobalt Steel
Package Quantity
1
Drill Bit Point Angle
135 deg.
Point Type
Split Point
Drill Bit Size
10.00 mm
Series
1891
Drill Point Length
0.0815 mm
Shank Diameter
10 mm
Finish
Straw/Bronze
Shank Length
46 mm
Flute Length
87 mm
Shank Type
Straight
Flute Type
Spiral
Shipping Weight
0 lb.
Grade
Heavy Duty
Spiral Direction
Right Hand
Helix Angle
21 to 34
General
Application
For Alloy, Stainless Steel, Titanium, Manganese Steel, Armor Plate
Material - Machining
Cobalt
Coolant Fed
Non-Coolant Through
Material Grade - Machining
High Performance
Depth:Dia. Ratio
4xD
Measurement System
Metric
Drill Bit Grouping
Individual
Primary Material Application ISO Code
H, K, N, P, S
Drill Bit Point Type
Split Point
Shank Dia.
10 mm
Drill Diameter Tolerance
+0.0000 in /-0.0010 in
Shank Type - Machining
Straight
Drill Length Class
Jobber Length
Standards
ASME B94.11M
Finish - Machining
Straw/Bronze
Product Description

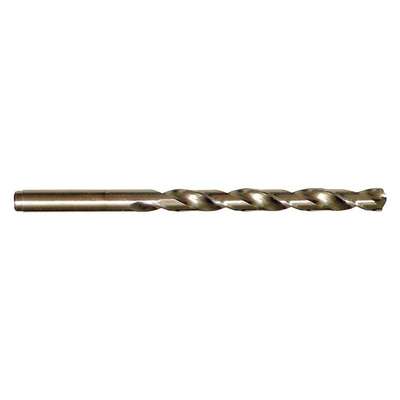

These drill bits have a straw/bronze finish that improves their wear resistance. They also have spiral flutes that evacuate chips as the bits drill into a workpiece.
Item Barcode
Jobber Drill,10.00mm,Cobalt
