WIKA

Commercial Pressure Gauge: Liquid-Filled, 0 to 100 psi ( 0 to 690 kPa ), 2 1/2 in Dial, 113.13

Hover over image to magnify

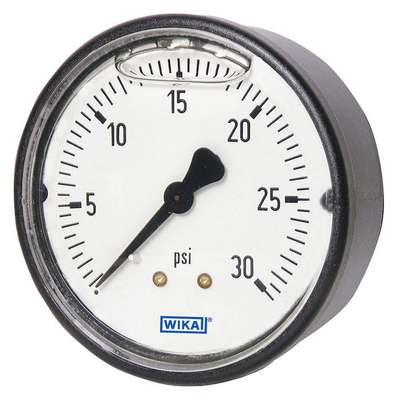

Pressure Gauge ,2-1/2" Dial
Pressure Gauge ,2-1/2" Dial

#937121-5 | Pkg Qty: 1

$28.90 pkg | $28.90 ea

Technical Specifications

Key Specifications
Brand
WIKA
Gauge Lens Material
Plastic
Calibration Certificate Included
No
Gauge Nominal Dial Size
2-1/2 in.
Gauge Accuracy
±3-2-3%
Liquid Filled
Yes
Gauge Application
Compressors, Hydraulics, Marine, Pumps
Mfr. Part Number
113.13.25.100.B
Gauge Case Material
ABS Plastic
Operating Temperature Range
-4 deg. F to 140 deg. F
Gauge Connection Location
Center Back
Package Quantity
1
Gauge Connection Size
1/4 in.
Shipping Weight
.4 lb.
Gauge Connection Type
MNPT
General
Accuracy Grade
ASME B40.100 Grade B
Nominal Dial Size
2 1/2 in
Accuracy Scale
Mid-Scale
Panel-Mountable
No
Blowout Safety Back
No
Pointer Material
ABS
Case Construction
Welded Joint
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Case Depth
29 mm
Pressure Range Type
Pressure
Case Diameter
62.5 mm
Pressure and Vacuum Gauge Type
Pressure Gauge
Cleaned for Oxygen Service
No
Primary Graduations
10 / 10
Compatible Process Media
Liquids and Gases
Primary Pressure Range
0 to 100
Dial Face Material
ABS
Primary Scale Minor Graduations
10
Dry Dampening Feature
None
Primary Scale Numeric Increments
10
Field Fillable
No
Primary Scale Units
psi
Freeze Resistant Movement
No
Process Connection
1/4 in NPT Male
Gauge Accuracy Grade
Grade B - Commercial
Process Connection Gender
Male
Gauge Case Liquid
Glycerin
Process Connection Location
Center Back
Gauge Wetted Parts
Brass / Bronze
Process Connection Size
1/4 in
IP/NEMA Rating
IP65
Process Connection Type
NPT
Includes
Vent Plug
Removable Bezel
No
Includes Calibration Certificate
No
Scale Type
Dual
Includes Mounting Hardware
No
Secondary Pressure Range
0 to 690 kPa
Includes Vent Plug
Yes
Secondary Scale Units
kPa
Lens Material - Gauge
Plastic
Sensor Material
Bronze
Liquid-Filled Case
Yes
Sensor Type
Bourdon Tube
Manufacturer Warranty Length
1 yr

Product Description

Commercial Pressure Gauge, Nominal Dial Size 2 1/2, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP65, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
