WALTER TITEX

Jobber Length Drill Bit, Drill Bit Size 11.00 mm, Drill Bit Point Angle 140 °, Carbide

Hover over image to magnify

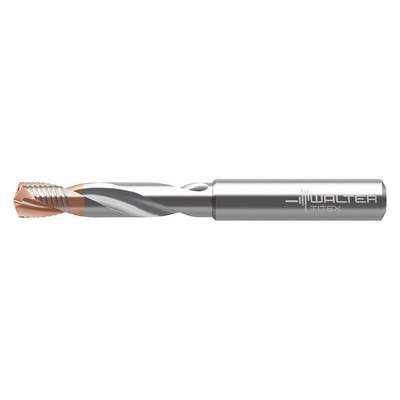

Jobber Drill,11.00mm,Carbide
Jobber Drill,11.00mm,Carbide
Jobber Length Drill Bit, Drill Bit Size 11.00 mm, Drill Bit Point Angle 140 °, Carbide Video

#937094-5 | Pkg Qty: 1

$244.46 pkg | $244.46 ea

Technical Specifications

Key Specifications
Brand
WALTER TITEX
Jobber Length Basic Material
Carbide
Coolant Through
Coolant Through
List Number
DC170-03
Cutting Direction
Right
Maximum Drilling Depth
40 mm
Decimal Equivalent
0.4331
Mfr. Part Number
DC170-03-11.000A1-WJ30EJ
Depth x Diameter Ratio
3xD
Number of Flutes
2
Drill Bit Dimension Type
Metric
Overall Length
102 mm
Drill Bit Material
Solid Carbide
Package Quantity
1
Drill Bit Point Angle
140 deg.
Point Type
Split Point
Drill Bit Size
11.00 mm
Series
Supreme
Drill Point Length
2.00 mm
Shank Diameter
12 mm
Flute Length
55 mm
Shank Length
45 mm
Flute Type
Spiral
Shank Type
Straight
Grade
WJ30EJ
Shipping Weight
.27 lb.
Item
Jobber Length Drill Bit
General
Application
For General Drilling, General Mechanical Engineering
Measurement System
Metric
Coolant Fed
Coolant Through
Number of Coolant Holes
2
Depth:Dia. Ratio
3xD
Primary Material Application ISO Code
K, P
Drill Bit Grouping
Individual
Secondary Material Application
Hardened Steel
Drill Bit Point Type
Split Point
Secondary Material Application ISO Code
H
Drill Diameter Tolerance
M7
Shank Dia.
12 mm
Drill Length Class
Jobber Length
Shank Type - Machining
Straight
Finish - Machining
TiAlN+AlCrN
Sheeter Drill
No
Material - Machining
Carbide
Standards
DIN 6537 K
Material Grade - Machining
WJ30EJ

Product Description

The TiAllCrN multilayer coating on these drill bits protects the bits from wear and extends their life when drilling steel and cast iron. As one layer of the coating wears down, a new layer is exposed. The bits have spiral flutes that evacuate chips as the bits drill into a workpiece, and they have a straight shank that installs into a drill chuck or similar toolholder.
