WIDIA GTD

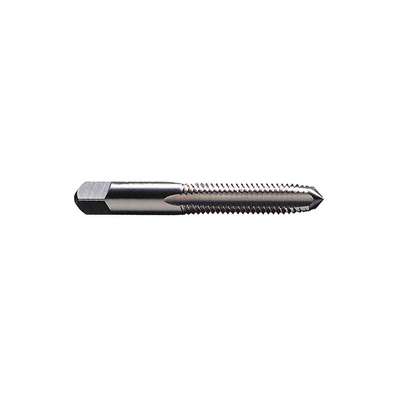

Straight Flute Tap, Thread Size 1"-12, UNF, Taper, Overall Length 5 1/8", High Speed Steel
Hover over image to magnify
#937089-8 | Pkg Qty: 1
$103.51 pkg | $103.51 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WIDIA GTD
Shank Length
2-1/2 in. in.
Cutting Direction
Right
Shipping Weight
.67 lb.
Cutting Direction
Right Hand
Spiral Direction
Neutral
Dimension Type
Decimal Inch
Square Size
0.6 in.
Grade
WP42EG
Subgroup | Tap
Straight Flute
Insert Material
High Speed Steel
Tap Chamfer
Taper
Item
Straight Flute Tap
Tap Dimension Type
Inch
List Number
7303
Tap Finish
Bright (Uncoated)
Mfr. Part Number
11672
Tap Material
High Speed Steel
Number of Flutes
4
Tap Size
1 in.
Number of Pieces
1
Tap Style
Straight Flute (Hand)
Overall Length
5-1/8 in.
Tap Thread Size
1 in.-12
Pack Quantity
1
Tap Thread Type
UNF
Primary Material Application
Aluminum, Brass, Bronze, Copper
Thread Direction
Right Hand
Series
7303
Thread Length
2-1/2 in.
Shank Diameter
51/64 in.
General
55% Thread Drill Size
15/16 in
Shank Dia.
51/64 in
65% Thread Drill Size
23.60 mm
Shank Type - Machining
Straight
75% Thread Drill Size
23.30 mm
Standards
ANSI
Class of Fit
2B
Tap Grouping
Individual
Coolant Fed
Non-Coolant Through
Tap Length Standard
ANSI
Extended Neck
Yes
Tap Shank Standard
ANSI
Measurement System
Fractional Inch
Thread Limit
2B
Primary Material Application ISO Code
N
Thread Limit / Class of Fit
2B / 2B
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Thread Standard
UNF
Secondary Material Application ISO Code
K, M, N, P
Threads per Inch
12
Product Description
The bright finish on these taps provides a smooth, polished surface.
Item Barcode
Straight Flute Tap,1"-12,Hss-E
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 53mn65 | |
 | UNSPSC CODES | 23241615 | |
 | VMRS (ATA) CODES | 053-006-009 |
