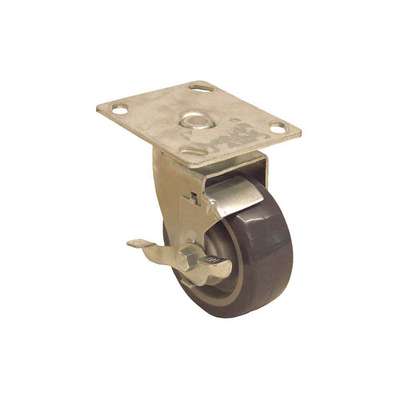

Standard Plate Caster, Swivel, Polyurethane, 440 lb, 5" Wheel Dia.

Hover over image to magnify
Standard Plate Caster,Swivel,
Standard Plate Caster,Swivel,

#937002 | Pkg Qty: 1

$19.08 pkg | $19.08 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
P13S-UP050D-14-SB
Caster Load Rating Range
Light- Medium Duty
Package Quantity
1
Load Rating
440 lb.
Shipping Weight
2.95 lb.
General
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4 1/2 in (B)
Caster Max. Temp.
160°F
Operating Temperature Range
-15° to 160°F
Caster Min. Temp.
-15°F
Swivel Lock Type
No Lock Included
Caster Plate Thickness
5/32"
Swivel Raceway Type
Double Ball
Caster Product Group
Swivel Caster with Brake
Thread Guards
No
Caster Temp. Range Available
Yes
Tread Shape
Standard
Extended Lead
No
Wheel Bearing Type
Delrin
Features
Floor Protective
Wheel Core Material
Plastic
Load Rating Range
300 to 999 lb
Wheel Dia.
5 in
Mounting Bolt Dia.
3/8 in
Wheel/Tread Hardness
55 Shore D
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Material
Polyurethane
Mounting Plate Size
4 in x 4 1/2 in

Product Description

Light-duty standard plate casters are installed onto the bottom of carts, dollies, business machines, store fixtures, food-service equipment, and other equipment that will be moved manually at moderate speeds. These casters are best suited for applications where they will be transporting relatively light loads along smooth, flat surfaces and won't encounter shock loading, such as in offices, retail stores, schools, and government buildings. Sometimes known as institutional plate casters, these light-duty standard plate casters have zinc-plated steel frames.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.

Item Barcode
9370020
Standard Plate Caster,Swivel,
 NameItemDescription
Grainger DropshipGrainger Dropship487g88
UNSPSC CODESUNSPSC CODES31162701
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009
