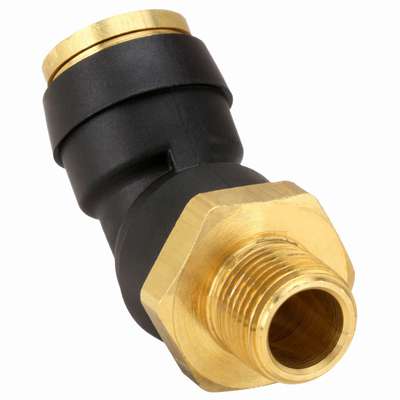

DOT Approved Male Elbow: Composite, Push-to-Connect x MNPTF, 5/8 in. Tube OD x 1/2 in. Pipe Thread, 5 PK
Hover over image to magnify
#936960-4 | Pkg Qty: 5
$156.30 pkg
| $31.26 ea
Technical Specifications
Key Specifications
Body Material
Composite
Material
Nylon 12 Body
Brand
PARKER
Mfr. Part Number
379PTC-10-8
Composite DOT Push-to-Connect Fittings Type
Elbows
Pack Quantity
5
Connection Type
Male
Pipe Thread
1/2 in.
DOT Approved
Yes
Shape
Elbow
Fitting Style
Composite
Shipping Weight
1.15 lb.
Fitting Type
Push-To-Connect
Tube Outside Diameter
5/8 in.
Hex Size
1-1/16 in.
General
Application
Air
Maximum Operating Pressure
250 psi
End Connection Type
Push-to-Connect, Threaded
Maximum Operating Temperature
200 Degrees F
Fitting Pipe Size
1/2 in
Minimum Operating Temperature
40 Degrees F
Fitting Shape
Elbow
Overall Length
1 3/16 in
Fitting Side A Connection Type
Push-to-Connect
Resistance Properties
Impact-Resistant
Fitting Side A Tube Outer Diameter
5/8 in
Specific Fitting Shape
45 Degrees Elbow Adapter
Fitting Side B Connection Type
MNPTF
System of Measurement
Imperial
Fitting Side B Pipe Size
1/2 in
Product Description
Male Elbow, 45 Degrees, DOT Fitting, Length 1.18, Hex Size 1 1/16, Tube Size 5/8, Thread Size 1/2, Pressure (PSI) 250 psi, Temp. Range -40 Degrees to 200 Degrees F, Standards DOTFMVSS 571106, SAE J1131, SAE J2494-3
Compliance & Restrictions

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
45 Male Elbow, 1/2 In.,PK5
Name | Item | Description | |
---|---|---|---|
![]() |
Grainger Dropship | 16W591 | |
![]() |
UNSPSC CODES | 40183101 | |
![]() |
VMRS (ATA) CODES | 053-006-009 | 45 Male Elbow, 1/2 |
