#936944-6 | Pkg Qty: 1
$59.52 pkg
| $59.52 ea
Technical Specifications
Key Specifications
Brand
OSG
Item
Extra Long Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
Cobalt
Cutting Direction
Right
List Number
1750
Cutting Direction
Right Hand
Maximum Drilling Depth
78.00 mm
Decimal Equivalent
0.2188
Mfr. Part Number
17547711
Depth x Diameter Ratio
10xD
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Material
Cobalt Steel
Overall Length
128 mm
Drill Bit Point Angle
120 deg.
Pack Quantity
1
Drill Bit Size
7/32 in.
Series
EX-Gold Helios
Finish
WXL
Shank Diameter
7/32 in.
Flute Length
78 mm
Shank Length
50 mm
Flute Type
Fast Spiral
Shank Type
Straight
Grade
General Purpose
Shipping Weight
0.1 lb.
General
Application
For Drilling Cast Iron, Carbon Steel, Alloy Steel, Die Steel and Hardened Steel Under 35 HrC
Material Grade - Machining
General Purpose
Coolant Fed
Non-Coolant Through
Measurement System
Fractional Inch
Depth:Dia. Ratio
10xD
Primary Material Application ISO Code
H, K, P
Drill Bit Grouping
Individual
Secondary Material Application
Aluminum, Hardened Steel, Stainless Steel, Titanium
Drill Bit Point Type
X Thinning Point
Secondary Material Application ISO Code
H, M2, M3, N1, S2
Drill Diameter Tolerance
+0.000mm/-0.018mm
Shank Dia.
7/32 in
Drill Length Class
Extra Long
Shank Type - Machining
Straight
Finish - Machining
WXL
Sheeter Drill
No
Material - Machining
Cobalt
Standards
Not Rated
Product Description

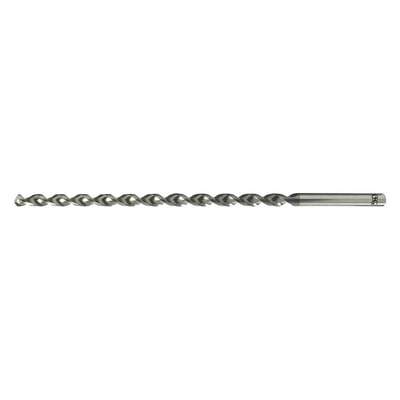

Fast-spiral-flute drill bits evacuate chips more quickly than standard spiral-flute drill bits. The WXL coating on these drill bits protects them from wear and is designed for drilling nonferrous metals and steels with a Rockwell hardness of up to 50 HRC. It is harder and has a higher oxidation temperature than a TiAlN coating.
Item Barcode
Extra Long Drill,7/32",Cobalt
Name | Item | Description | |
---|---|---|---|
![]() |
Grainger Dropship | 34YV09 | |
![]() |
UNSPSC CODES | 20111614 | |
![]() |
VMRS (ATA) CODES | 053-006-009 |
