PARKER

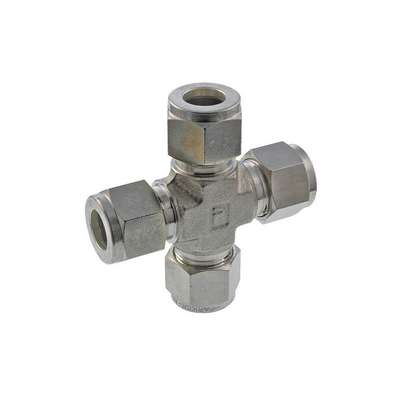

Union Cross: 316 Stainless Steel, Compression x Compression x Compression x Compression, A-LOK

Hover over image to magnify
Union Cross,316SS,Alok,3/8In
Union Cross,316SS,Alok,3/8In

#936603-6 | Pkg Qty: 1

$168.11 pkg | $168.11 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Basic Fitting Material
Metal
Mfr. Part Number
6ECR6-316
Basic Fitting Shape
Cross
Package Quantity
1
Brand
PARKER
Shipping Weight
.28 lb.
Hex Size
5/8 in.
Tube Size
3/8 in.
Item
Union Cross
General
Compatible Fitting Brands
A-LOK(R)
Fitting Side C Tube Outer Diameter
3/8 in
End Connection Type
Compression
Fitting Side D Connection Type
Compression
Fitting Body Material
316 Stainless Steel
Fitting Side D Tube Outer Diameter
3/8 in
Fitting Side A Tube Outer Diameter
3/8 in
Material Grade
316
Fitting Side B Tube Outer Diameter
3/8 in
Standards
ASME-SA-479, TYPE 316-SS, BS970, 316-S31, DIN 4401, ASTM A276 Type 316

Product Description

With a compression design that allows for easy assembly this PARKER A-LOK® union cross provides a leaktight seal for high pressure, vibration, and vacuum in gas or liquid applications. Features a double-ferrule design that allows the front ferrule to create a pressure seal on tube and body. Fitting won’t twist the tubing during installation so that the mechanical integrity of the tubing is preserved. Has a 4:1 safety factor with respect to the working pressure capabilities of the tubing used. Can be used with 304, 316, or 316L stainless steel tubing. For use in refineries, chemical processing, power generation, and instrument lines.

Item Barcode
9366036
Union Cross,316SS,Alok,3/8In
 NameItemDescription
Grainger DropshipGrainger Dropship4cxt2
UNSPSC CODESUNSPSC CODES40183111
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009
