SCHNEIDER ELECTRIC

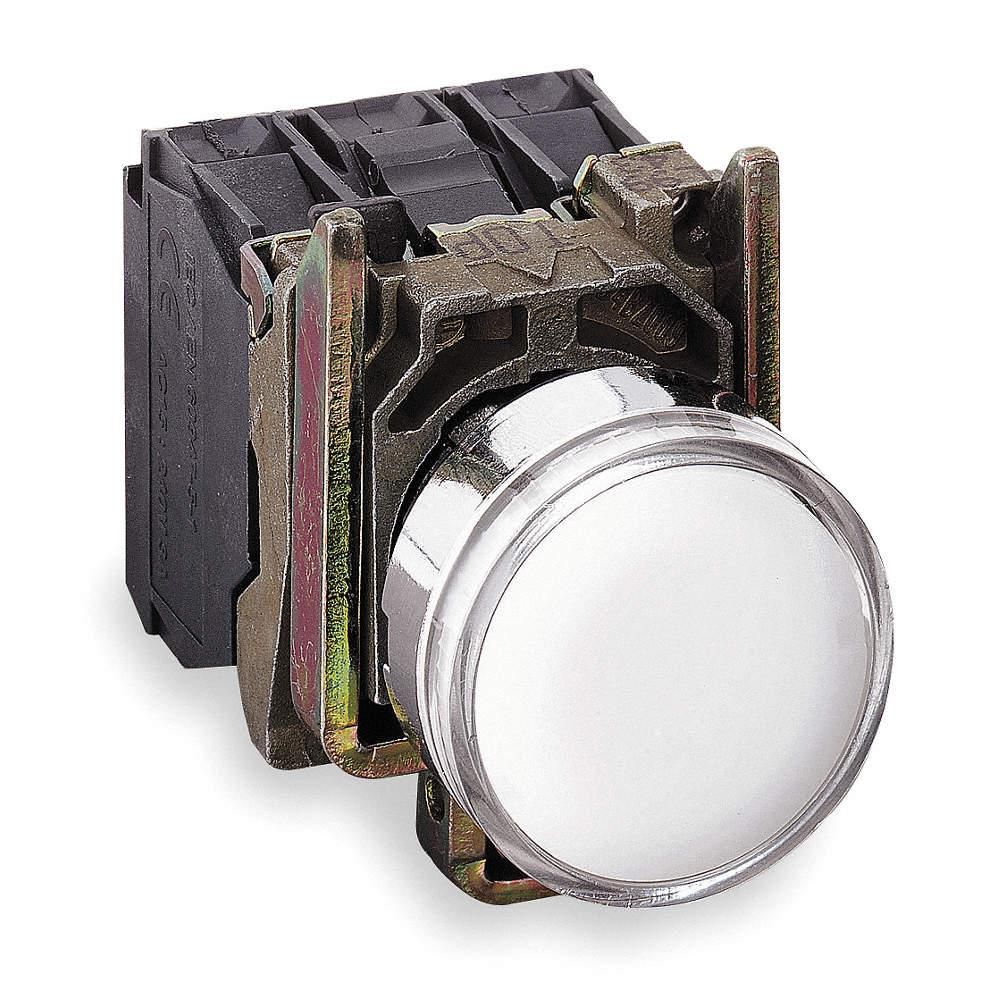

Schneider Electric Illuminated Push Button, 22 mm, Maintained / Momentary, Round Guarded Button, Metal

Hover over image to magnify
Illuminated Push Button,22mm,
Illuminated Push Button,22mm,

#936351-1 | Pkg Qty: 1

$141.75 pkg | $141.75 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Action
Maintained/Momentary
Lamp Voltage
24 VAC/DC
Basic Material
Metal
Material of Construction
Chrome
Bezel
Chrome Plated Metal
Mfr. Part Number
XB4BW31B5
Brand
SCHNEIDER ELECTRIC
NEMA Contact Rating Designation
A600/Q600
Color Family
White
NEMA Rating
1, 12, 13, 2, 3, 4, 4X
Contact Form
1NO/1NC
Number of Operators
1
Contact Rating
10 A @ 600 VAC
Pack Quantity
1
Contact Type
1NO/1NC
Shipping Weight
.15 lb.
Head Material
Metal
Size
22 mm
IP Rating
66
Terminal Connection
Pressure Plate
Item
Illuminated Push Button
Type
Protected LED
Lamp Module Type
Full Voltage
Type of Operator
Round Guarded Button
Lamp Module Voltage
24 VAC/DC
Voltage
24 VAC/DC
Lamp Type
LED
General
Standards
CE, CSA, UL

Product Description

22mm Momentary Push Buttons and Pilot Lights—Complete Units

  • No-notch mounting NEMA rated 1, 2, 3, 4, 4X, 12, and 13 Come complete with contact block, ready for easy installation. CSA Certified, and CE Certified. Meet IEC standards.
