B & A

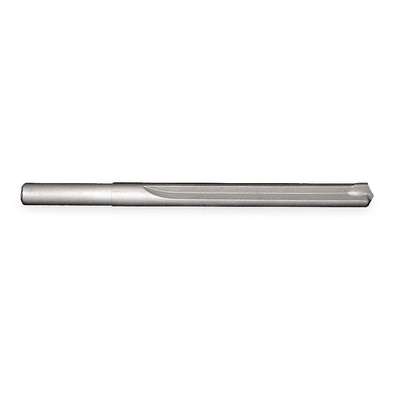

Straight Flute Drill Bit, Drill Bit Size 7/32", Drill Bit Point Angle 120 °, Carbide Tipped

Hover over image to magnify
Straight Flute Drill,7/32",
Straight Flute Drill,7/32",

#935906-5 | Pkg Qty: 1

$11.27 pkg | $11.27 ea

Technical Specifications

Key Specifications
Application
For Extra Hard Steel Such As Safes, Dies And Bearing Races
Grade
Extra Hard Steel
Brand
B & A
Helix Angle
0 deg.
Cutting Direction
Right Hand
Item
Straight Flute Drill Bit
Decimal Equivalent
0.2188
List Number
1844
Drill Bit Dimension Type
Fractional Inch
Mfr. Part Number
SP-5
Drill Bit Material
Carbide-Tipped
Overall Length
4 in.
Drill Bit Point Angle
120 deg.
Pack Quantity
1
Drill Bit Size
7/32 in.
Series
SP
Finish
Bright
Shipping Weight
0.04 lb.
Flute Type
Straight
Standards
ANSI
General
Aircraft Drill
No
Material - Machining
Carbide Tipped
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Split Point
Primary Material Application ISO Code
P
Drill Length Class
Jobber Length
Shank Dia.
7/32 in
Finish - Machining
Bright (Uncoated)
Shank Type - Machining
Straight

Product Description

These straight-flute drill bits have a bright finish that is unaffected when the bits' cutting edges are resharpened. Carbide-tipped drill bits have carbide cutting edges that provide excellent hardness, wear resistance, and heat resistance. The bits' body is made from a material that absorb more vibration and shock than carbide, so they are less rigid and less likely to break than solid carbide drill bits. These bits are used in machine setups.

Item Barcode
9359065
Straight Flute Drill,7/32",
  Name Item Description
Grainger Dropship Grainger Dropship 4CJD1
UNSPSC CODES UNSPSC CODES 20111614
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Straight Flute Drill,
