EVOLVE

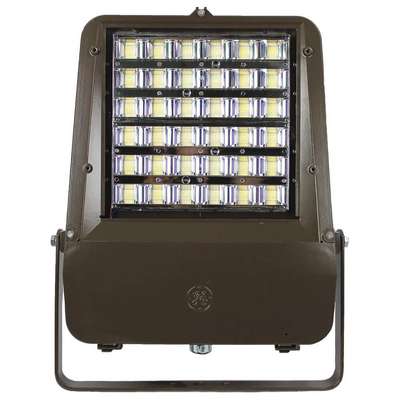

Floodlight, LED, Fixture Mounting Location Pole, Trunnion Mount Type, 5,000 K Color Temperature

Hover over image to magnify
Floodlight,LED,38,100 Lm,297W
PI_Asset_1755499
PI_Asset_1758594
Floodlight,LED,38,100 Lm,297W
PI_Asset_1755499
PI_Asset_1758594

#935888-6 | Pkg Qty: 1

$2,224.34 pkg | $2,224.34 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
EVOLVE
Light Technology
LED
Color Rendering Index
70
Lumens
38100 lm
Color Temperature
5000 K
Mfr. Part Number
EFH1010EE76750ADT1DKBZ
Housing Finish
Dark Bronze
Mount Type
Trunnion
Housing Material
Die Cast Aluminum
Package Quantity
1
IP Rating
66
Shipping Weight
45 lb.
Item
Floodlight
Voltage
120 to 277 VAC
General
Fixture Height
4 29/32 in
Fixture Width
19 19/64 in
Fixture Housing Color
Bronze
Green Environmental
Product Contributes To Reducing Energy Consumption
Fixture Housing Material
Die-Cast Aluminum
IP Rating - Fixtures
66
Fixture Length
23 3/4 in
LED Replacement For
400 to 1000W MH
Fixture Lens Material
Plastic
Light Distribution Shape
NEMA 7x6
Fixture Lumens Range
6001 lm and Greater
Lumens per Watt
128.3 lm/W
Fixture Mounting Location
Pole
Number of Lightheads
1
Fixture Sensor Type
7-Pin Receptacle
Standards
UL
Fixture Temp. Range
-40 Degrees to 50 Degrees C
Wattage Range
101 to 300W
Fixture Wattage
297 W

Product Description

LED universal mount floodlights project a bright, clean light and reach full brightness instantly. They use LED lamps, which last longer and use significantly less energy than universal mount floodlights with other lamp types, such as high-pressure sodium or compact fluorescent. They also produce very little heat and can withstand temperature changes and humidity. These outdoor lighting fixtures are commonly used to replace traditional floodlights in a variety of commercial applications.

Universal mount floodlights are outdoor lighting fixtures that project a bright, high-intensity light over a widespread area to increase visibility. They can be mounted on walls, ceilings, poles, or the ground. They are typically one of several floodlights used to illuminate sports fields, parks, building exteriors, and industrial yards.

Item Barcode
9358886
Floodlight,LED,38,100 Lm,297W
 NameItemDescription
Grainger DropshipGrainger Dropship487A99
UNSPSC CODESUNSPSC CODES39111704
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Floodlight, LED,38,100
