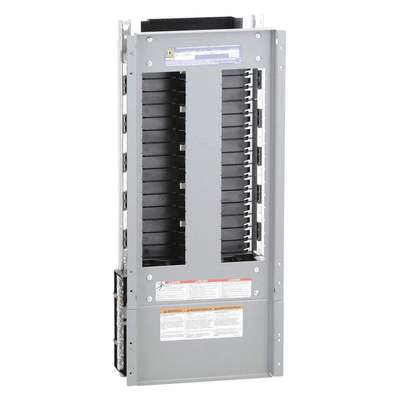

Panelboard Interior, Convertible, Main Lug, Circuit Breaker Series EDB, EDG, EDJ, Amps 125 A

Hover over image to magnify
Panelboard Interior,125 A,277/

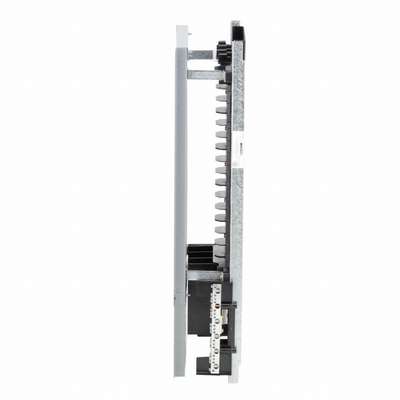

PI_Asset_1984708

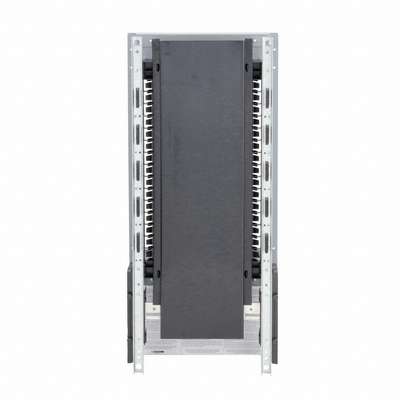

PI_Asset_1988719

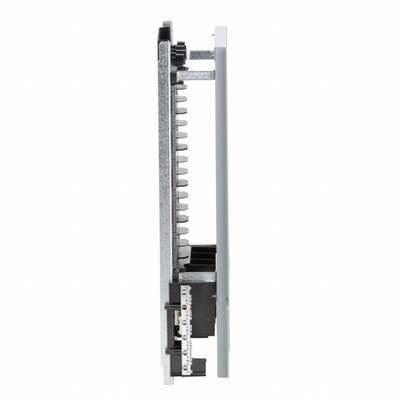

PI_Asset_1991829
Panelboard Interior,125 A,277/
PI_Asset_1984708
PI_Asset_1988719
PI_Asset_1991829

#934627-5 | Pkg Qty: 1

$1,928.00 pkg | $1,928.00 ea
Item Number 934627-5
Scanner Description Panelboard Interior,125 A,277/
Inventory Status Drop Ship Item
Weight 32 lb
Brand SQUARE D

Technical Specifications

Amps
125 A
Mains
Fixed
Amps AC
125
Mfr. Part Number
NF430L1C
Brand
SQUARE D
NEMA Rating
NEMA 3R, 5, 12
Bus Material
Copper
Number of Spaces
30
Circuit Breaker Type
Plug in. Miniature
Pack Quantity
1
Copper (AWG/kcmil)
(1) 6 to 2/0
Phase
3
Depth
5-3/4 in.
Recommended Flush Cover
4HGZ9 for Main Lug, 4HHA1 for Main Breaker
Enclosure
1D691 for Main Lug, 1D698 for Main Breaker
Recommended Surface Cover
3TX80 for Main Lug, 3TX84 for Main Breaker
Flush Cover
4HGZ9 for Main Lug, 4HHA1 for Main Breaker
Short Circuit Current Rating
100000 RMS Symmetrical
For Use With
NF Circuit Breakers
Standards
CSA C22.2, UL 67
Height
27 in.
Surface Cover
3TX80 for Main Lug, 3TX84 for Main Breaker
Item
Panelboard interior
Type
Main Lug
Main Circuit Breaker
Main Lug
Voltage
277/480Y VAC
Main Circuit Breaker Adapter Kit
22P069, 48N065
Width
10-7/16 in.
Main Circuit Breaker or Main Lug
Convertible, Main Lug

Product Description

These Square D NF main lug panel interiors distribute power downstream from main breakers. They're used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They can be converted to a main breaker load center with a required adapter kit and main circuit breaker, so they can be used to distribute the main supply of power if needed. They're used with bolt-on branch circuit breakers and top and bottom feed breakers to protect circuits from overcurrents. These interiors are used as part of a complete panelboard system and can be customized to meet different needs. They're used in residential, commercial, and industrial applications.

Item Barcode
9346275
  Name Item Description
Grainger Dropship Grainger Dropship 3TZ04
UNSPSC CODES UNSPSC CODES 39121103
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Panelboard Interior,125
