SQUARE D

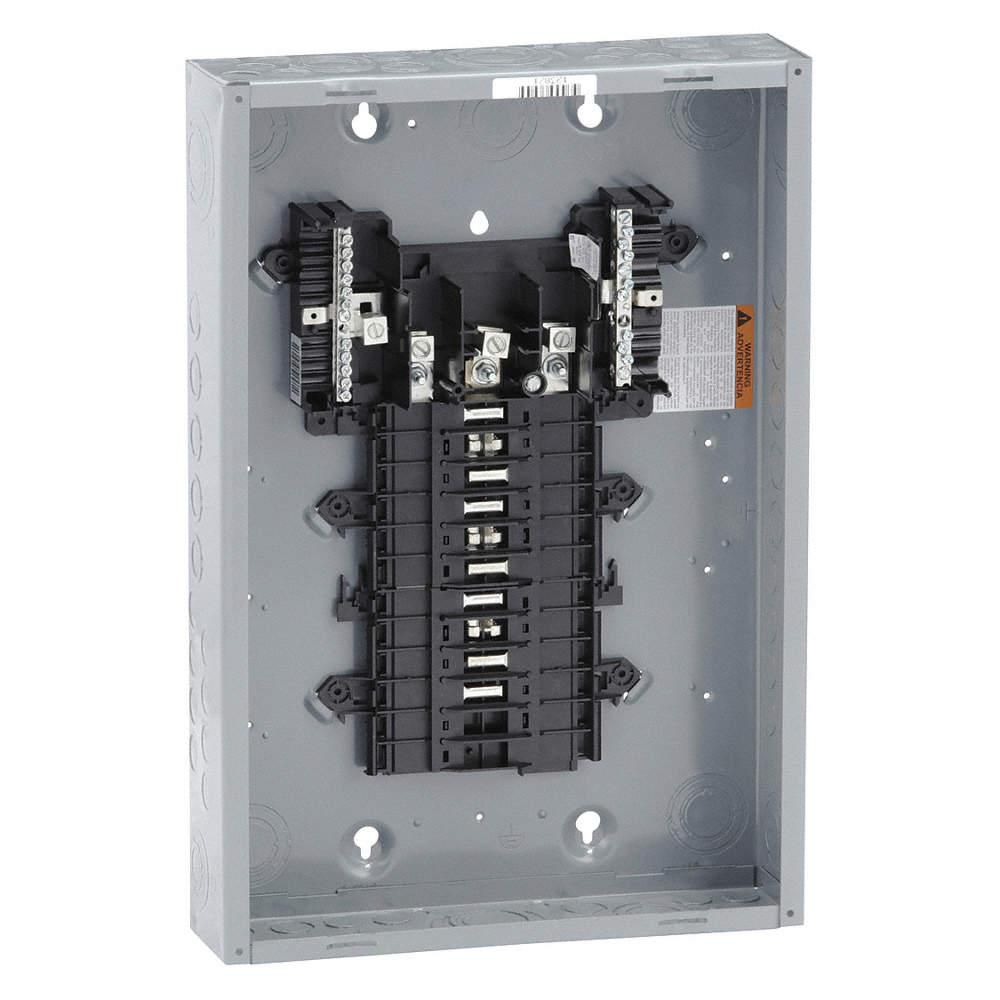

Load Center, Number of Spaces 20, Amps 125 A, Circuit Breaker Type QO, Voltage 208Y/120/240V AC

Hover over image to magnify
Load Center,Lug,125A,208Y/
PI_Asset_1984286

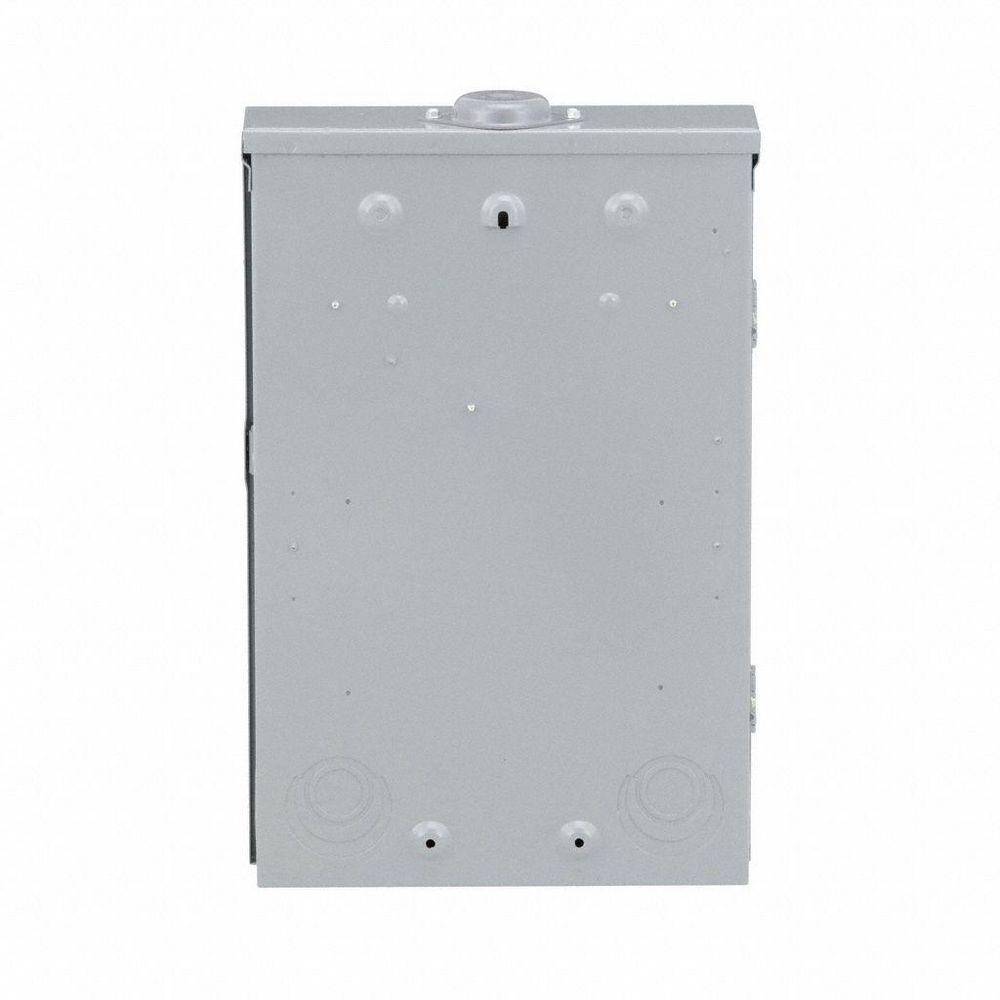

PI_Asset_1988362
PI_Asset_1991434
Load Center,Lug,125A,208Y/
PI_Asset_1984286
PI_Asset_1988362
PI_Asset_1991434

#933823 | Pkg Qty: 1

$560.72 pkg | $560.72 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Aluminum Wire (AWG/kcmil)
6 to 2/0
Material of Construction
Shielded Copper
Amperage
125 A
Maximum Number of 1-Pole Circuits
20
Amps
125 A
Maximum Number of Tandem Breakers
0
Brand
SQUARE D
Mfr. Part Number
QO320L125G
Bus
One Piece
NEMA Rating
1
Bus Material
Tin Plated Copper
Number of Spaces
20
Circuit Breaker Type
QO
Package Quantity
1
Copper (AWG/kcmil)
6 to 2/0
Phase
3
Cover Type
Low Profile with Automatic Flush Adjustment
RMS Symmetrical Amp Rating
65000
Depth
3-3/4 in.
Recommended Flush Cover
1D433
Enclosure
Indoor
Recommended Ground Bar Kit
Included
Enclosure Material
Steel
Recommended Surface Cover
1D434
Enclosure NEMA Rating
1
Rotated For
Top or Bottom Feed
Federal Specification
W-P-115c as Type 1 Class 2
Series
QO
Flush Cover
1D433
Shipping Weight
13 lb.
Ground Bar Kit
Included
Short Circuit Current Rating
65kA
Height
20.91 in.
Surface Cover
1D434
Item
Load Center
Type
Main Lugs
Main Circuit Breaker or Main Lug
Main Lug
Voltage
208Y/120/240VAC
Mains
Fixed Lug
Width
14-1/4 in.
General
Enclosure Surface Finish
Enamel
Max. No. of 1-Pole Circuits
20
Feed Location
Top/Bottom
Max. Operating Temp.
104°F
For Use With
Square D QO Circuit Breakers
Min. Operating Temp.
23°F
Included Enclosure Cover
Order Separately
Special Features
Mercury Free
Location
Indoor
Standards
RoHS Compliant

Product Description

These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They're used with QO series circuit breakers to protect circuits from overcurrents. They are used in residential, commercial, and industrial applications.
