DAYTON

Dayton General Purpose Motor, 3 HP, Capacitor-Start/Run, Nameplate RPM 1,750, Voltage 115/230V AC

Hover over image to magnify

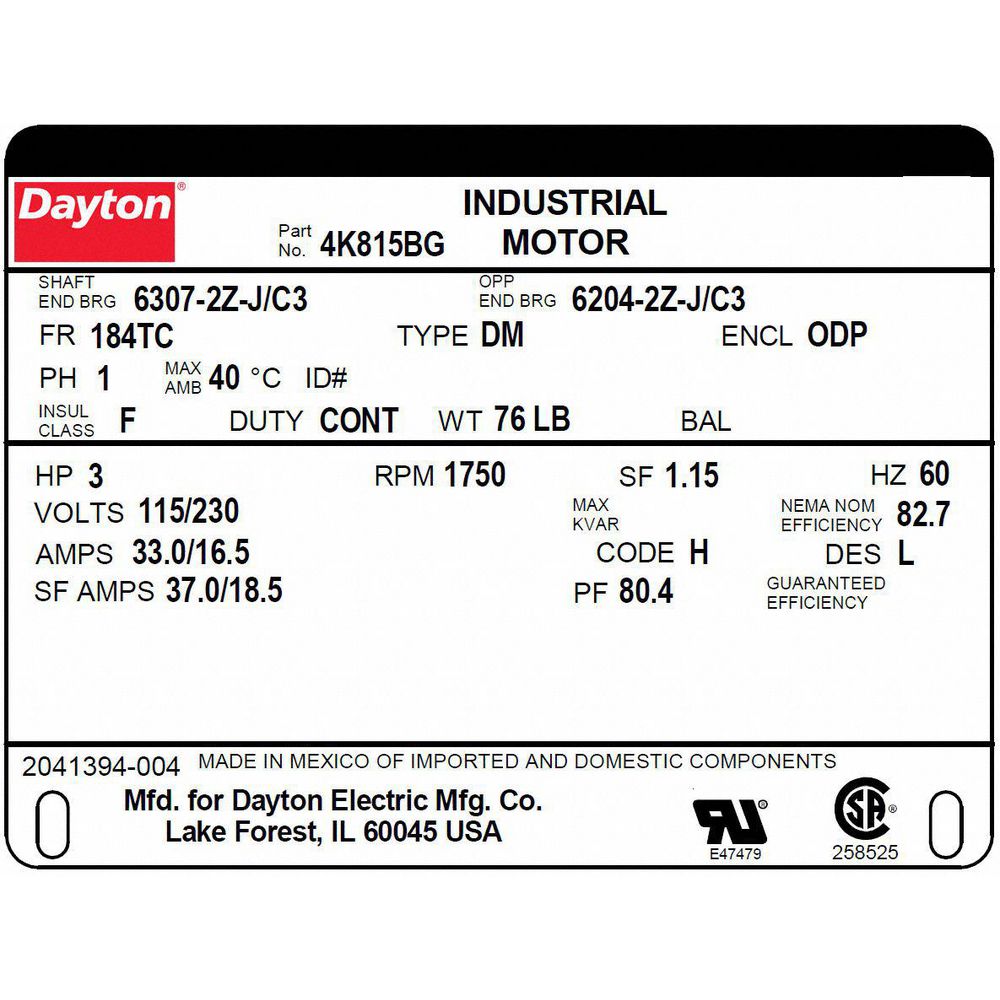

Gp Mtr,Cs,Odp,3 Hp,1750 Rpm,
PI_Asset_1767758
Gp Mtr,Cs,Odp,3 Hp,1750 Rpm,
PI_Asset_1767758

#932947-3 | Pkg Qty: 1

$1,140.34 pkg | $1,140.34 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearings
Ball
Motor Type
Capacitor-Start
Brand
DAYTON
Mounting
Face/Base
Duty
Continuous
NEMA/IEC Frame
184TC
Duty Cycle
Continuous
Nameplate RPM
1750
Enclosure
Open Dripproof
Number of Speeds
1
Footnotes
51
Overall Length
14-1/4 in.
Frame
184TC
Package Quantity
1
Frame Material
Steel
Phase
Single
Full Load Amps
33.0/16.5
Rotation
CW/CCW
Hz
60
Service Factor
1.15
Insulation Class
F
Shaft Length
2-3/4 in.
Item
General Purpose Motor
Shaft Type
Keyed
Length Less Shaft
11-5/16 in.
Shipping Weight
75 lb.
Mfr. Part Number
4K815
Thermal Protection
None
Mfr. Warranty Length
1 yr.
Voltage
115/230 VAC
Motor Design
Capacitor-Start/Run
General
HP
3
Motor Shaft Design
Keyed
Ins. Class
F
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 °C
Motor Thermal Protection
None
Motor Application
General Application
NEMA Frame
184TC
Motor Bearings
Ball
No. of Speeds
1
Motor Efficiency Group
Energy Efficient
Nominal Efficiency
82.7 %
Motor Enclosure Design
Open Dripproof
RPM Group
1701-1800
Motor Frame Material
Steel
RPM Range
1,701-1,800
Motor Mounting Position
All Angle
Shaft Dia.
1 1/8 in
Motor Mounting Type
Face/Base
Standards
CSA (225293), UL (E47479)
Motor Service Factor
1.15
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC

Product Description

NEMA 180 frame capacitor-start/run general purpose AC motors have a standard 1-1/8" diameter, 2-3/4" length shaft whose center is 4-1/2" above the mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 184TC. The letter “T” specifies integral HP motor dimension standards set by NEMA in 1953 and 1964, and “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
