HUBBELL WIRING DEVICE-KELLEMS

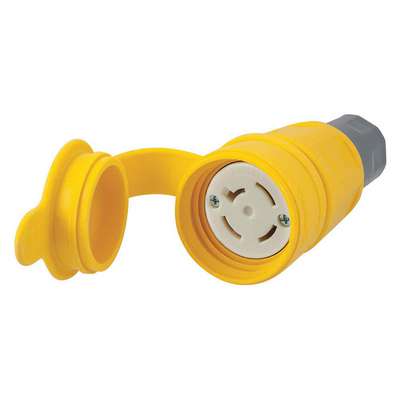

Hubbell Wiring Device-Kellems 20 Amp Industrial Grade Watertight Locking Connector, 20A, Non-NEMA NEMA Configuration, Yellow

Hover over image to magnify
Connector,Non-Nema,20A,120/
PI_Asset_1981034
Connector,Non-Nema,20A,120/
PI_Asset_1981034

#932785-5 | Pkg Qty: 1

$204.99 pkg | $204.99 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
20 A
Midget Locking
No
Amps
20 A
Minimum Operating Temperature
-40 °C
Antimicrobial
No
Minimum Wire Size
18 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Enclosure Rating
12, 4, 4X, 6, 6P
Cap Type
Press-On Cap
NEMA Plug Configuration
20A, Non-NEMA
Color Family
Yellow
NEMA Rating
4, 4X, 6, 6P
Connection Orientation
Straight
NEMA Receptacle Configuration
Non-NEMA
Contact Material
Nickel-Plated Brass
Number of Poles
4
Cord Size
0.325 in to 0.875 in
Number of Wires
4
Corrosion Resistant
Yes
Outside Diameter
2.77 in.
Current Rating
20 A
Overall Length
2.77 in.
Description
Twist Lock Watertight Connector
Package Quantity
1
For Maximum Cable Diameter
0.625 in.
Phase
Three
For Minimum Cable Diameter
0.375 in.
Power Indicating Light
No
Grade
Industrial/Commercial
Power Indicator
No
Housing Color
Yellow
Shipping Weight
1 lb.
Housing Material
Thermoplastic Elastomer
Shrouded
Yes
IP Rating
IP69K
Special Features
Corrosion Resistant
Item
Watertight Locking Connector
Standards
ANSI
Material
Thermoplastic Elastomer, Valox
UL 94 Flammability Rating
HB
Material of Construction
Thermoplastic Elastomer, Valox
Voltage
120/208VAC
Maximum Operating Temperature
60 °C
Voltage Rating
120/208V AC
Maximum Wire Size
8 AWG
Wire Connection Type
Screw Terminals
Mfr. Part Number
HBL27W09
Wiring Style
Standard
General
Amps - Plugs and Receptacles
20
Special Features
Corrosion Resistant
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
120/208V AC
NEMA Plug Configuration - Plugs and Receptacles
20A, Non-NEMA

Product Description

Features keyed interior for easy installation and high conductivity brass termination. Also designed with Gotcha® ring and collapsible bushing strain relief. The strain relief nut seals on the body, eliminating areas of debris collection, and provides impact resistance. Unique cone seal prevents dirt and debris from collecting at cable entrance. Triple bypass seal keeps water away from electrical connections. Smooth body design minimizes collection points and simplifies wash down process. Also features cone seal that adjusts to various cable ranges. All stainless steel hardware and corrosion-resistant connection points.

Item Barcode
9327855
