MARKEL PRODUCTS

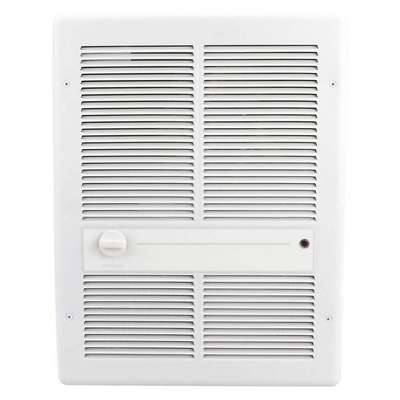

Markel Products Recessed Electric Wall-Mount Heater, 1,125W/1,500W, 2,250W/3,000W, 208/240V AC, 1-phase

Hover over image to magnify
Electric Wall Heater,Btuh 3840/
PI_Asset_1756917
PI_Asset_1763028
Electric Wall Heater,Btuh 3840/
PI_Asset_1756917
PI_Asset_1763028

#931709-9 | Pkg Qty: 1

$603.01 pkg | $603.01 ea

Technical Specifications

Key Specifications
Air Flow
175 CFM
Manufacturers Warranty Length
1 yr.
Amperage
10.8 A/12.5 A, 5.4 A/12.5 A
Mfr. Part Number
HF3315T2RPW
Brand
MARKEL PRODUCTS
Mounting Type
Surface and Recessed
Color Family
White
Pack Quantity
1
Frequency
60 Hz
Phase
1
Heating Capacity
5120/10240 BtuH
Programming Capability
Not Programmable
Heating Method
Fan Forced
Shipping Weight
22.4 lb.
Housing Material
Steel
Standards
ETL Listed for US and Canada
Includes
Thermostat
Tamper Resistant
Yes
Item
Recessed Electric Wall-Mount Heater
Voltage
208/240 VAC
General
Air Temp. Rise
40 Degrees F
Nominal Voltage - HVAC
208V AC, 240V AC
Automatic Fan Delay (On/Off)
Yes
Occupancy Sensor
No
Building Management System Compatible
No
Remote Control Functions
No Remote Control Included
Disconnect Switch
No
Rough-In Depth
4 in
Fan Only Operation
No
Rough-In Dimensions - H x W x D
19-1/2 in x 14-1/8 in x 4 in
Filter Included
No
Rough-In Height
19 1/2 in
Grille Depth
1 in
Rough-In Width
14 1/8 in
Grille Finish
Powder Coated
Setback Control
No
Grille Height
20 1/8 in
Smart Connectivity
No Connectivity
Grille Material
18 ga Steel
Thermal Overheat Protection
Automatic Reset
Grille Width
15 3/8 in
Thermostat Contact Type
Double Pole
Heater Mounting Position
Vertical Burn
Thermostat Included
Unit-Mounted
Hold Function
No
Voltage, Phase
208/240V AC, 1-phase
Key Features
Mechanical Controls, Overheat Protection
Wattage Field Convertible
Yes
Minimum Mounting Height from Floor
10 in
Wattage Output
1,125W/1,500W, 2,250W/3,000W

Product Description

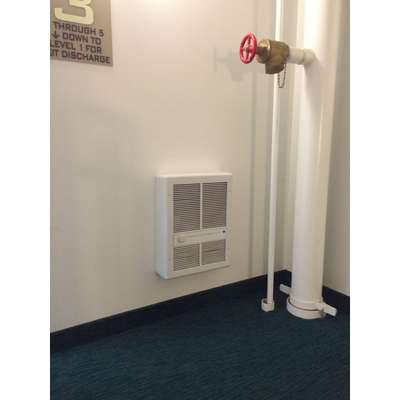

Large recessed electric wall heaters are larger than compact and register heaters and are used to heat areas like offices, reception rooms, family rooms, and other residential and small commercial spaces. These fan-forced heaters install in an opening in the wall near the floor so heat flows into the space to be heated. These heaters have a built-in thermostat.
