SSI

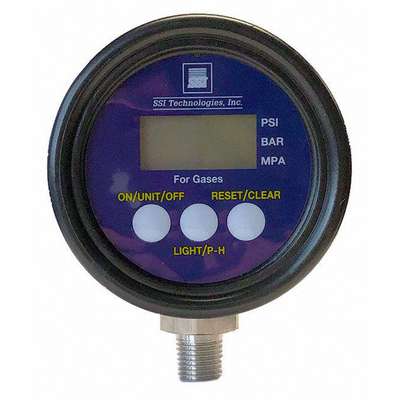

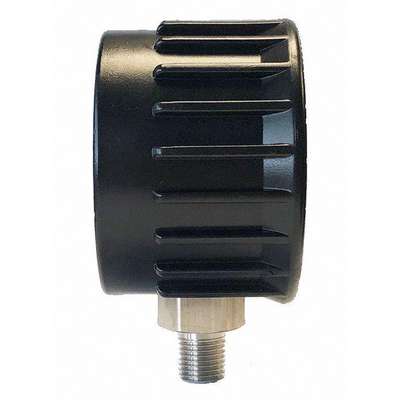

SSI MGA-30-A-9V-R Digital Industrial Pressure Gauge: 0 to 30 psi, For Dry Air & Gases, 1/4 in NPT Male, Bottom
Hover over image to magnify
#931135-3Pkg Qty: 1
$106.00 pkg | $106.00 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Battery Type
9V Battery
Gauge Sensor Material
Silicone Crystal Sensor
Brand
SSI
Gauge Socket Material
304L Stainless Steel
Burst Pressure
15,000 psi
Hazardous Location Rating
Not Rated
Calibration Certificate Included
No
Item
Digital Industrial Pressure Gauge
Display
LCD
Mfr. Part Number
MGA-30-A-9V-R
Gauge Accuracy
±1.00 %
Mfr. Warranty Length
1 yr.
Gauge Application
Pressure Detection
Mounting Type
Stem-Mount
Gauge Case Color
Black
Non-Sparking
No
Gauge Case Material
ABS
Number of Digits
4
Gauge Connection Location
Bottom
Operating Temperature Range
-10 deg. C to 60 deg. C
Gauge Connection Size
1/4 in.
Package Quantity
1
Gauge Connection Type
MNPT
Power Source
Battery
Gauge Nominal Dial Size
2-1/2 in.
Pressure Range
0 to 30
Gauge Panel Mountable
No
Series
MGA
Gauge Primary Range Units
psi
Shipping Weight
.7 lb.
General
Accuracy Grade
Grade 1A
IP/NEMA Rating
NEMA 4X
Accuracy Grade Gauge Type
Industrial
Includes
Instructions
Adjustable Set Points
Yes
Includes Batteries
Yes
Auto-Shutoff
Yes
Includes Rubber Boot
Yes
Auto-Shutoff Time
3 min
Languages
English
Backlit Screen
Yes
Manufacturer Warranty Length
1 yr
Case Depth
46 mm
Media
Air or Gas Only
Case Diameter
2.5 in
Peak Hold
Yes
Case Shape
Round
Pressure Gauge Type
Industrial Pressure Gauge
Digital Gauge Accuracy
+/-1.00% of Reading
Pressure Range Type
Pressure
Digital Gauge Display Units
bar, MPa, psi
Process Connection
1/4 in NPT Male
Digital Pressure and Vacuum Gauge Type
Digital Pressure Gauge
Process Connection Gender
Male
Display Range
0 to 30 psi
Process Connection Type
NPT
Display Resolution
0.01 psi
Sensor Material
Silicone Crystal Semiconductor
Gauge Accuracy Grade
Grade 1A - Industrial
Sensor Type
Diaphragm
Gauge Wetted Parts
Stainless Steel / Silicon
Standards
CE Certified, NIST
Product Description
Digital Pressure Gauge, 2 1/2 in, Basic Gauge Case Material Plastic, Basic Gauge Wetted Parts Stainless Steel, Gauge Connection Type MNPT, Gauge Connection Size 1/4 in, Gauge Connection Location Bottom, Gauge Primary Range Units psi, Gauge Primary Range Values 0 to 30, Digital Gauge Accuracy +/-1.00 Percent of Reading, Display Backlit LCD, Number of Display Digits 4, Socket Material 304L Stainless Steel, Case Material ABS Thermoplastic, Case Color Black, Digital Gauge Display Units bar, MPa, psi
