HUBBELL WIRING DEVICE-KELLEMS

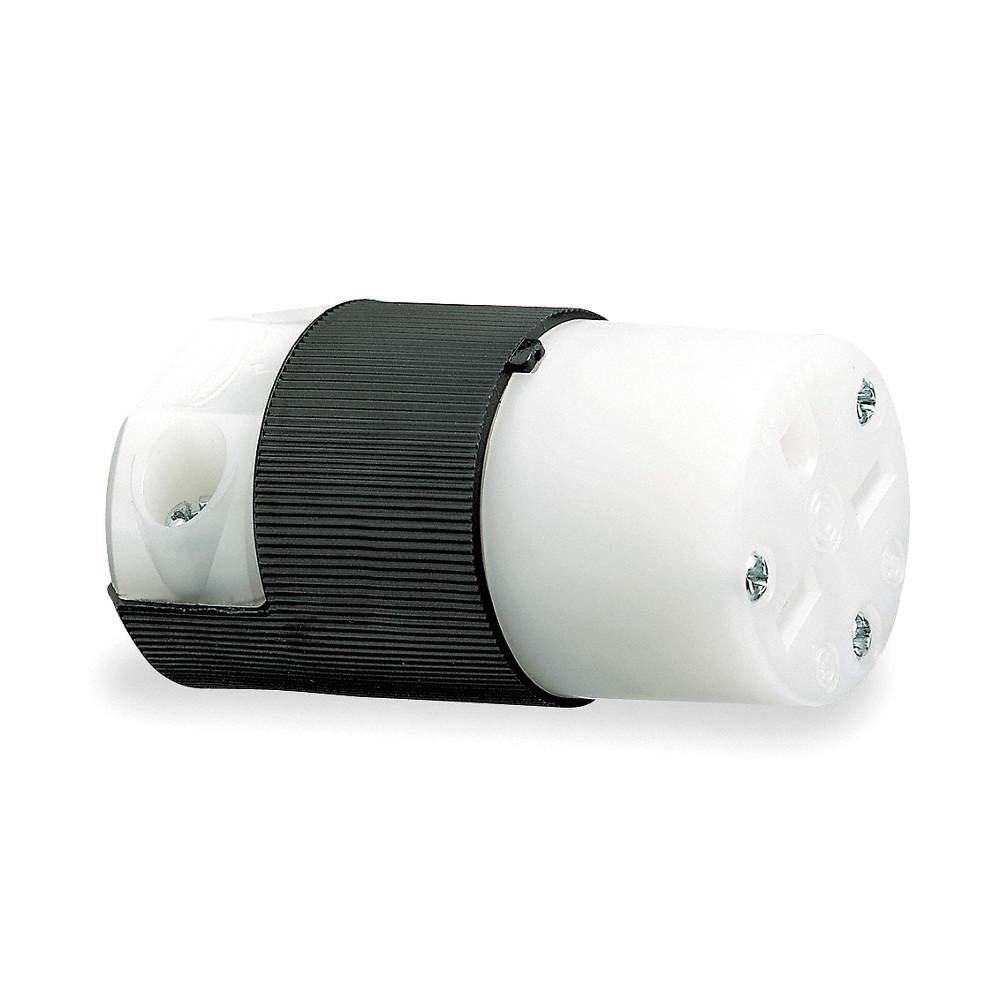

Hubbell Wiring Device-Kellems 15 Amp Industrial Grade Standard Straight Blade Connector, 6-15R NEMA Configuration, Black/White

Hover over image to magnify
Connector,6-15R,15A,250V
PI_Asset_1982971
Connector,6-15R,15A,250V
PI_Asset_1982971

#931020 | Pkg Qty: 1

$55.87 pkg | $55.87 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
15 A
Maximum Wire Size
10 AWG
Amps
15 A
Mfr. Part Number
HBL5669C
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Cap Type
No Cap or Cover
NEMA Configuration - Plugs & Connectors
6-15
Color Family
Black / White
NEMA Plug Configuration
6-15R
Connection Orientation
Straight
NEMA Receptacle Configuration
6-15R
Contact Material
Brass
Number of Poles
2
Cord Size
0.230 in to 0.720 in
Number of Wires
3
Corrosion Resistant
No
Overall Length
2.78 in.
Current Rating
15 A
Package Quantity
1
Description
Insulgrip, Grounding
Phase
Single
For Environment
Dry
Polarized
Yes
For Location
Indoor
Power Indicating Light
No
For Maximum Cable Diameter
0.72 in.
Power Indicator
No
For Minimum Cable Diameter
0.23 in.
Shipping Weight
.2 lb.
Grade
Industrial
Shrouded
No
Grounding
Grounded
Special Features
Moisture, Dust, and Weather Resistant
Horsepower
1 1/2 hp
Standards
CSA Certified, NEMA WD-6 Compliant, UL Listed
Housing Material
Thermoplastic Elastomer
Subcategory
Connectors
IP Rating
IP20
Type
Insulgrip
Insulation Material
Nylon
Voltage
250VAC
Item
Straight Blade Connector
Voltage Rating
250V AC
Material
Nylon
Wire Connection Type
Screw Terminals
Material of Construction
Nylon
Wiring Style
Standard
Maximum Operating Temperature
75 °C
General
Amps - Plugs and Receptacles
15 A
Special Features
Moisture, Dust, and Weather Resistant
Grade - Plugs and Receptacles
Industrial
Sub-Category
Connectors
HP
1 1/2 hp
Voltage - Plugs and Receptacles
250V AC
NEMA Plug Configuration - Plugs and Receptacles
6-15R

Product Description

NEMA Straight-Blade Plugs and Connectors CSA Certified.

Insulgrip® The original black-and-white plug and connector that was developed for industrial cord ends. Tough, ribbed nylon housing withstands heavy abuse and holds securely without slippage. Powerful Vari-size® cord grip adjusts to a wide range of cord sizes, 10/3 SO to 18/3 SJ. "Picture Window" wiring gives visual assurance that conductors are inserted and terminated correctly.
