DAYTON

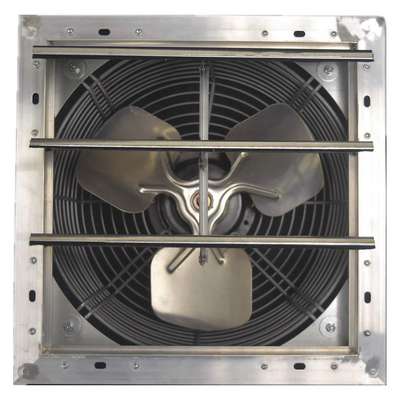

Dayton 1/15 HP 12"-Dia. 115VACV Shutter Mount Exhaust Fan, 13" Square Opening Required

Hover over image to magnify
Shutter Mnt Exh Fan,Blade 12"
PI_Asset_947587
PI_Asset_947588
Shutter Mnt Exh Fan,Blade 12"
PI_Asset_947587
PI_Asset_947588
Dayton 1/15 HP 12"-Dia. 115VACV Shutter Mount Exhaust Fan, 13" Square Opening Required Video

#930953-2 | Pkg Qty: 1

$126.85 pkg | $126.85 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
DAYTON
Package Quantity
1
Item
Shutter Mount Exhaust Fan
Shipping Weight
11.2 lb.
Mfr. Part Number
484X38
General
Assembled
Fully Assembled
Maximum Ambient Operating Temperature
104 Degrees F
Exhaust Airflow @ 0.000 in SP
844 cfm
Maximum Coverage Area
250 sq ft
Exhaust Airflow @ 0.100 in SP
479 cfm
Maximum Exhaust Airflow @ 0.000 in SP
0 to 2000 cfm
Exhaust Airflow @ 0.125 in SP
401 cfm
Maximum Inlet Temperature
104 Degrees F
Fan Style
Shutter-Mounted
Maximum Noise Level
5.9 sones
Fan Voltage
115V AC
Maximum Noise Level @ 0.000 in SP @ 5 ft
Greater than 9.0 sones
For Cut-Out Height
13 in
Motor Enclosure Design
Totally Enclosed Air Over (TEAO)
For Cut-Out Width
13 in
Motor Horsepower
2/3 hp
For Maximum Wall Thickness
6 in
Motor Speed
1,550 RPM
For Minimum Wall Thickness
3 in
Nameplate Voltage
115V AC
Full Load Current
0.7 A
Noise Level @ 0.000 in SP @ 5 ft
5.9 sones
Guard Finish
Powder Coated
Noise Level @ 0.100 in SP @ 5 ft
5.84 sones
Guard Type
Intake
Nominal Voltage
115V AC
Includes
Intake Guard
Number of Fans
1
Includes Dehumidistat
No
Number of Shutters
1
Includes Motor
Yes
Speed Controllable
Yes
Manufacturer Warranty Length
1 yr
Square Opening Required
10-1/2 to 20 in
Maximum Airflow
884 cfm
Ventilation Type
Exhaust

Product Description

Shutter Mount Exhaust Fan, Blade Dia. 12 in, Number of Speeds Variable, Fan Voltage 115V AC, CFM @ 0.000-In. SP 775, Exhaust/Supply Fan Motor HP 1/15 hp, Square Opening Required 13 in, CFM @ 0.125-In. SP 475, CFM @ 0.250-In. SP 285, Sones @ 0.000-In. SP @ 5 Ft. 5.9, Motor RPM 1550, Hz 60, Phase 1, Full Load Amps 0.7, Max. Ambient Temp. 104 Degrees F, Motor Type PSC, Motor Enclosure Totally Enclosed Air-Over, Motor Insulation Class B, Bearing Type Ball, Height 15 1/8 in, Width 15 1/8 in

Item Barcode
9309532
Shutter Mnt Exh Fan,Blade 12"
 NameItemDescription
Grainger DropshipGrainger Dropship484X38Shutter Mnt Exh Fan,12"
UNSPSC CODESUNSPSC CODES40101502
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Shutter Mnt Exh Fan,12"
