SQUARE D

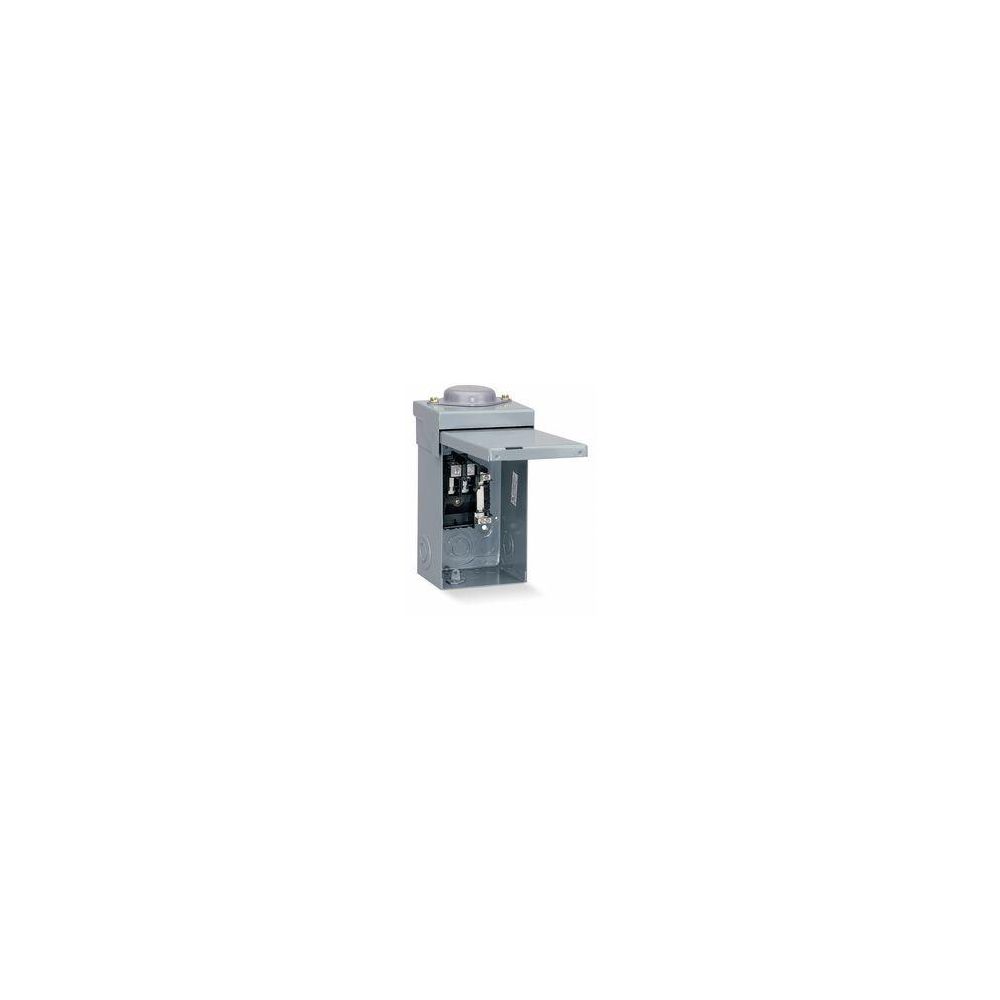

Load Center, Main Lug,60 Amps,208Y/120VAC, 240/120VAC Delta, 240VAC Delta Voltage,Number of Spaces:

Hover over image to magnify
Load Center,Lug,60A,208Y/
PI_Asset_1757577
PI_Asset_1769628
Load Center,Lug,60A,208Y/
PI_Asset_1757577
PI_Asset_1769628

#930630 | Pkg Qty: 1

$220.13 pkg | $220.13 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
60 A
Maximum Number of 1-Pole Circuits
3
Amps
60 A
Maximum Number of Tandem Breakers
0
Brand
SQUARE D
Mfr. Part Number
QO403L60NRB
Bus
Shielded, One Piece
NEMA Rating
3R
Bus Material
Tin Plated Aluminum
Number of Spaces
3
Circuit Breaker Type
QO
Package Quantity
1
Copper (AWG/kcmil)
10 to 6
Phase
3
Depth
4 in.
RMS Symmetrical Amp Rating
65000
Enclosure
Outdoor
Recommended Ground Bar Kit
5B718
Enclosure Material
Galvanized Steel
Recommended Surface Cover
Included
Enclosure NEMA Rating
3R
Series
QO
Federal Specification
W-P-115c as Type 1 Class 2
Shipping Weight
8.3 lb.
Ground Bar Kit
5B718
Short Circuit Current Rating
65kA
Height
13.19 in.
Surface Cover
Included
Item
Load Center
Type
Main Lugs
Main Circuit Breaker or Main Lug
Main Lug
Voltage
208Y/120/240VAC
Mains
Fixed Lug
Width
6.94 in.
General
Cover Attachment Style
Top Hinge
Location
Outdoor
Cover Closure Method
Latch
Max. No. of 1-Pole Circuits
3
Enclosure Surface Finish
Enamel
Max. Operating Temp.
104°F
Feed Location
Top/Bottom
Min. Operating Temp.
23°F
For Use With
Square D QO Circuit Breakers
Special Features
Mercury Free
Included Enclosure Cover
Surface Cover
Standards
RoHS Compliant

Product Description

These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They're used with QO series circuit breakers to protect circuits from overcurrents. They are used in residential, commercial, and industrial applications.
