EATON BUSSMANN

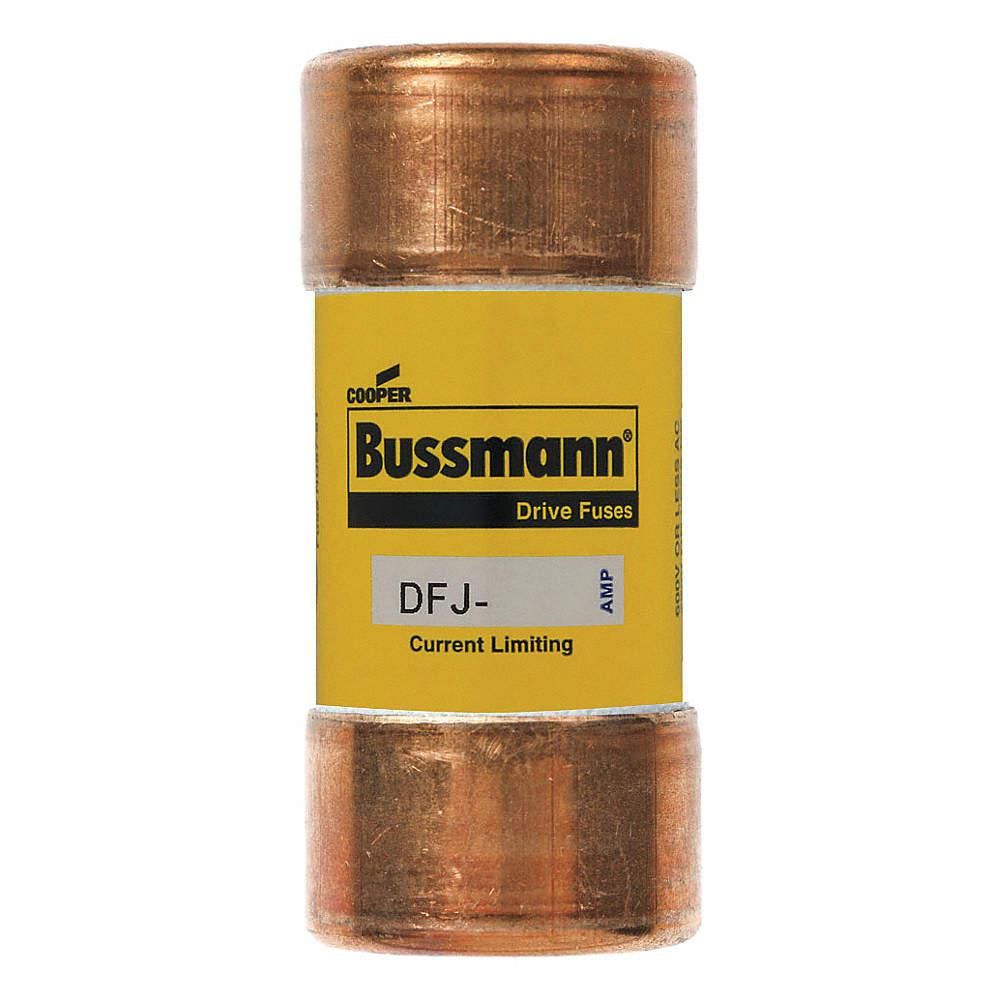

Fuse: 20 A, 600V AC, 2-1/4 in L x 13/16 in dia Fuse Size, Cylindrical Body, 450V DC

Hover over image to magnify
Fuse,20A,600VAC/450DC,Fast,Ser
Fuse,20A,600VAC/450DC,Fast,Ser

#930478-2 | Pkg Qty: 1

$77.21 pkg | $77.21 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
600 VAC
Fuse Voltage Rating
600 VAC/450 VDC
Amperage
20 A
Indicating / Nonindicating
Nonindicating
Body Material
Melamine
Interrupt Rating
100k A at 450 VDC, 200k A at 600 VAC
Body Style
Cylindrical
Item
Fuse
Brand
EATON BUSSMANN
Length
2-1/4 in.
Class
J
Mfr. Part Number
DFJ-20
DC Voltage Rating
450 VDC
Package Quantity
1
Diameter
13/16 in.
Rejection / Nonrejection
Nonrejection
Element
Single
Series
Dfj
Functionally Equal To
Mersen/Ferraz Shawmut HSJ
Shipping Weight
.09 lb.
Fuse Amps
20A
Speed
Fast Acting
Fuse Holder Code
Z
Voltage Rating
600 VAC/450 VDC
Fuse Speed
Fast Acting
General
Compatible Fuse Block Series
CH30J, CH60J, J600, JM600, JM601, JM602, JM604, JM606
Fuse Size
2-1/4 in L x 13/16 in dia
Equivalent Series
DFJ, HSJ, LDFJ
Standards
CE, 248-8, Class J, UL, Guide JDDZ, File E4273, CSA, Class 1422-02, File 53787
Fits Fuse Block Style
Nonrejection
Visual Indication
Nonindicating

Product Description

Fast-acting, nonindicating UL Class J fuses open within seconds of being exposed to overloads and short circuits. Also called fast-blow Class J fuses, they are highly sensitive to changes in current flow and don't tolerate temporary overload currents or power surges. They have no indicator for identifying a blown fuse, so they're sometimes used with an indicating fuse block or cover.

UL Class J fuses have a high interrupting rating for protecting against short circuits and are ideal for IEC motor starter applications. These 600VAC fuses are not interchangeable with any other UL fuse class. They are current-limiting to prevent electrical damage by disconnecting circuits before they're exposed to the full magnitude and duration of an overcurrent.
