HUBBELL WIRING DEVICE-KELLEMS

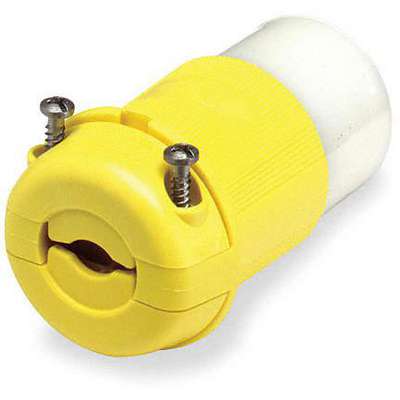

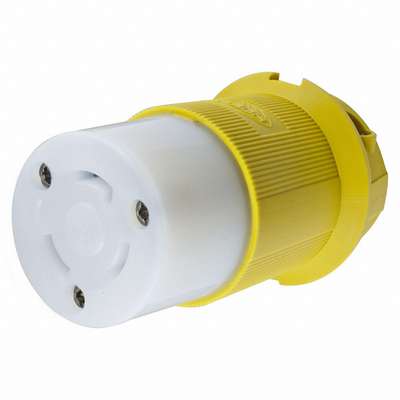

Hubbell Wiring Device-Kellems 30 Amp Marine Grade Locking Connector, L5-30R NEMA Configuration, Yellow
#929691-3 | Pkg Qty: 1
$113.05 pkg | $113.05 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Accessory Group
E
Maximum Wire Size
8 AWG
Amperage
30 A
Mfr. Part Number
HBL26CM13
Amps
30 A
Midget Locking
No
Antimicrobial
No
Minimum Operating Temperature
-40 °C
Boot Code
B
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L5-30
Cap Type
No Cap or Cover
NEMA Plug Configuration
L5-30R
Color Family
Yellow
NEMA Receptacle Configuration
L5-30R
Connection Orientation
Straight
Number of Poles
2
Contact Material
Nickel-Plated Brass
Number of Wires
3
Cord Size
0.325 in to 0.930 in
Overall Length
2.26 in.
Corrosion Resistant
Yes
Package Quantity
1
Current Rating
30 A
Phase
Single
Description
Insulgrip, Standard, Grounding
Plate Code
B
For Maximum Cable Diameter
0.93 in.
Power Indicating Light
No
For Minimum Cable Diameter
0.36 in.
Power Indicator
No
Grade
Marine
Shipping Weight
.35 lb.
Grounding
Grounded
Shrouded
No
HP
1 HP
Special Features
Corrosion Resistant
Horsepower
1 hp
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Housing Color
Yellow
Subcategory
Connectors
Housing Material
Nylon
Type
Connector Body
IP Rating
IP20
UL 94 Flammability Rating
HB
Item
Locking Connector
Voltage
125VAC
Material
Nylon
Voltage Rating
125V AC
Material of Construction
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L5-30R
Grade - Plugs and Receptacles
Marine
Special Features
Corrosion Resistant
HP
1.0
Voltage - Plugs and Receptacles
125V AC
Product Description
NEMA Twist-Lock® Devices Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
