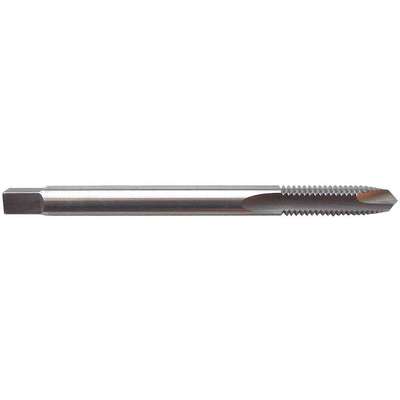

1/8"-27 Extension Pipe Tap, Plug, 4 Flutes, High Speed Steel, Bright Tap Finish

Hover over image to magnify
Ext Pipe Tap,Plug,1/8"-27,
Ext Pipe Tap,Plug,1/8"-27,

#927832-3 | Pkg Qty: 1

$74.70 pkg | $74.70 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
NORTH AMERICAN
Size
1/8 in.
Cutting Direction
Right
Square Size
0.328 in.
Finish
Bright
Subgroup | Tap
Pipe
Flutes
4
Tap Chamfer
Plug
Item
Extension Tap
Tap Dimension Type
Pipe
List Number
Common Specials
Tap Finish
Bright (Uncoated)
Material
M1 Tool Steel
Tap Material
High Speed Steel
Mfr. Part Number
15419
Tap Size
1/8 in.
Number of Flutes
4
Tap Style
Extension
Number of Pieces
1
Tap Thread Size
1/8 in.-27
Overall Length
6 in.
Tap Thread Type
NPT
Package Quantity
1
Thread Direction
Right Hand
Pitch
27
Thread Length
3/4 in.
Series
Co mmon Special
Thread Type
NPT
Shank Diameter
7/16 in.
Tolerance
Proj +/- .062
Shank Length
5-1/4 in. in.
Type
Plug
Shipping Weight
.26 lb.
General
75% Thread Drill Size
Q
Tap Grouping
Individual
Extended Neck
Yes
Tap Length Standard
ANSI
Extended Shank
Yes
Tap Shank Standard
ANSI
Material Grade - Machining
Common Special
Tap Type
Pipe
Measurement System
Fractional Inch
Thread Standard
NPS, NPSF, NPSI, NPT
Shank Dia.
7/16 in
Threads per Inch
27
Standards
ANSI

Product Description

The bright finish on these taps provides a smooth, polished surface. High-speed steel taps provide good wear resistance in general purpose tapping applications in a range of materials. Pipe taps come in thread standards and sizes that are used on parts in pipe systems. They create or repair internal threads in pipe and fittings so they can form a pressure-tight seal with parts that have matching external threads.

Item Barcode
9278323
