Home All Products Cutting & Holemaking Tools Milling End Mills Square End Mills SKU: 927777-8
OSG

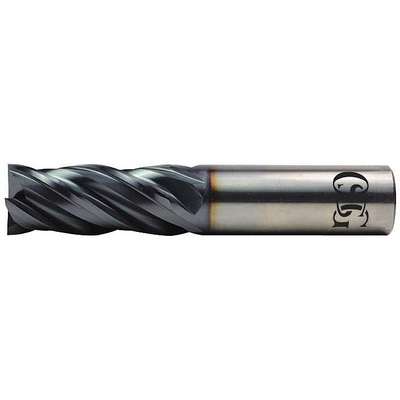

Square End Mill, 1/4" Milling Diameter, Number of Flutes: 4, 1-1/4" Length of Cut, TiAlN, VG441

Hover over image to magnify
End Mill, 1/4" Dia, 1-1/4" Cut,
End Mill, 1/4" Dia, 1-1/4" Cut,
Square End Mill, 1/4" Milling Diameter, Number of Flutes: 4, 1-1/4" Length of Cut, TiAlN, VG441 Video

#927777-8 | Pkg Qty: 1

$41.63 pkg | $41.63 ea

Technical Specifications

Key Specifications
Application
For Carbon Steel, Tool Steel, Cast Iron, 300 or 400 Series Stainless Steel, Ti-Alloys and Ni-Alloys
Item
Square End Mill
Brand
OSG
Length of Cut
1-1/4 in.
Cutting Direction
Right Hand
List Number
VG441
Cutting Type
Center
Mfr. Part Number
VG441-2502
Diameter
1/4 in.
Milling Diameter
1/4 in.
Dimension Type
Fractional Inch
Number of Flutes
4
End
Center Cutting
Overall Length
3-1/4 in.
End Mill Application
Roughing/Finishing
Pack Quantity
1
End Mill Cutting Type
Center Cutting
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Tool and Die Steel
End Mill Material
Carbide
Series
HY-PRO(R) CARB VGX
End Style
Square
Shipping Weight
.1 lb.
Finish
TiAlN
Single End/Double End
Single End
Grade
High Performance
Type
Variable Geometry
Helix Angle
35
General
Drilling Tool Configuration
Individual
Measurement System
Fractional Inch
End Mill Style
Square
Milling Dia.
1/4 in
Finish - Machining
TiAlN
Miniature End Mill
No
Material - Machining
Carbide
Primary Material Application ISO Code
K, M, P, S
Material Applications
Steel, Carbon Steel, Cast Iron, Inconel, Nickel, Stainless Steel
Shank Dia.
1/4 in
Material Grade - Machining
High Performance
Shank Type - Machining
Straight

Product Description

The TiAlN coating on these end mills withstands high temperatures and protects them from wear. It allows the end mills to be used at faster speeds than end mills with a bright finish, and it resists cracks and oxidation better than TiN or TiCN coatings.

High-performance carbide square end mills are designed to last longer and create a finer finish when used in their recommended, first-choice materials than general purpose end mills. They are used in production milling. Roughing/finishing end mills remove large amounts of material and create a smooth finish on the workpiece at the same time. Carbide end mills provide excellent wear resistance and heat resistance, and they are harder than high-speed steel, cobalt, or powdered-metal end mills. Also called square-nose end mills, square end mills have a square nose and are rotated against a piece of stock to create a flat-bottomed groove with 90° inside corners in milling tasks. They are used for counterboring, side and face milling, and milling square shoulders.

Item Barcode
9277778
End Mill, 1/4" Dia, 1-1/4" Cut,
  Name Item Description
Grainger Dropship Grainger Dropship 30L461 End Mill, 1/ 4" Dia, 1-1/
UNSPSC CODES UNSPSC CODES 27112803
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 End Mill, 1/ 4" Dia, 1-1/
