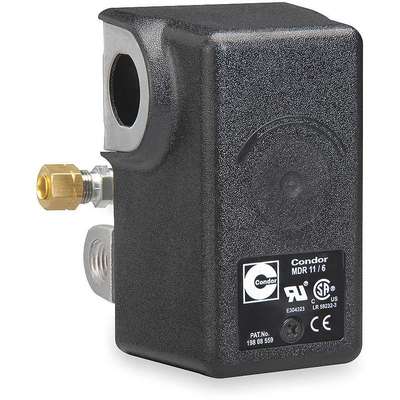

Air Compressor Pressure Switch; Range: 25 to 160 psi, Port Type: (4) Port, 1/4" FNPT

Item Number 927765
Scanner Description Pressure Swtch,Dpst,25 To 160
Weight 0.85 lb
Brand CONDOR USA, INC
Pkg Qty: 1
$32.70 pkg | $32.70 ea

Add to List

Technical Specifications

AC Contact Rating 26A @ 240V   Number of Ports 4
Action Standard   Pack Quantity 1
Actuation Type Diaphragm   Phase Single
Amps 26   Port Type 4-Port 1/4 in. FNPT
Application Air Compressor   Pressure Range (PSI) 25 to 160
Brand CONDOR USA, INC   Pressure Switch Action Standard
Burst Pressure 500 psi   Pressure Switch Application Air Compressor
Contact Form DPST   Pressure Switch Differential 25 to 65 psi
Contact Type DPST   Pressure Switch Electrical Contact Form DPST
Differential 25 to 65 psi   Pressure Switch Factory On/Off Setting 120/150 psi
Differential Pressure (PSI) 25 to 65   Pressure Switch Port Type (4) Port, 1/4 in. FNPT
Enclosure NEMA 1   Pressure Switch Range 25 to 160 psi
Factory On/Off Setting 120/150 psi   Pressure Switch Unloader 1/4 in. Compression
Factory On/Off Setting (PSI) 120 to 150   Range 25 to 160 psi
HP @ 1 Phase - 120V 2   Series MDR11
HP @ 1 Phase - 230V 3   Special Features 4 kW/4 HP Switching Capacity, 11 Bar/160 psi Maximum Cut-Out Pressure
HP @ 1 Phase - 240V 3   Standards UL Listed, CSA Certified
IP Rating 54   Temp. Range -22° to 257°F
Item Pressure Switch   Temp. Range (F) -22 to 257
Manual Switch Action None   Type Air Compressor
Mfg Part Number 11LCXE   Unloader 1/4 in. Compression
NEMA Rating 1

Product Description

  • Shipping Weight 0.85 lbs.
Country of Origin China Country of Origin is subject to change.
