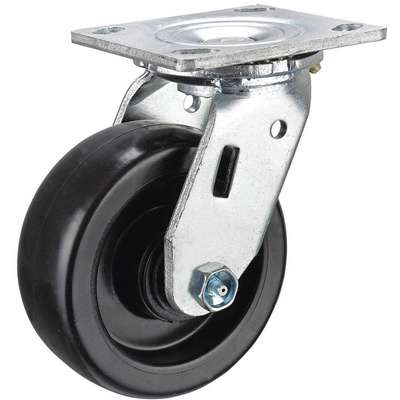

Standard Plate Caster, Swivel, Glass Filled Nylon, 1000 lb., 5" Wheel Dia.

Hover over image to magnify
Standard Plate Caster, Swivel, Glass Filled Nylon, 1000 lb., 5" Wheel Dia.
Swivel Plate Caster,Nylon,
PI_Asset_947819

#927754-4 | Pkg Qty: 1

$73.50 pkg | $73.50 ea
Item Number 927754-4
Scanner Description Swivel Plate Caster,Nylon,
Inventory Status Drop Ship Item
Weight 4.75 lb
Brand APPROVED SUPPLIER

Technical Specifications

Brand
APPROVED SUPPLIER
Inside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Brake Included
No
Item
Plate Caster
Caster Core Material
Glass Filled Nylon
Load Rating
1000 lb.
Caster Group
Swivel Caster
Mfr. Part Number
P21S-NG050R-14
Caster Load Rating Range
Medium Duty
Number of Wheels
1

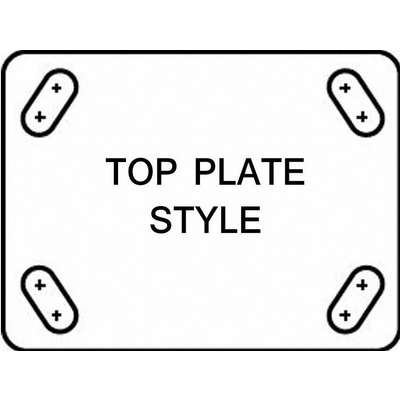

Caster Plate Hole Pattern
B
Outside Bolt Hole Spacing
3 in. x 3 in.
Caster Plate Size
4 in. x 4-1/2 in.
Overall Height
6-1/2 in.
Caster Raceway
Double Ball
Pack Quantity
1
Caster Swivel Lock Type
No Lock Included
Plate Caster Sub-Type
Swivel
Caster Temperature Range Available
Yes
Plate Size
4 in. x 4-1/2 in.
Caster Wheel Bearings
Roller
Standards
ICWM
Caster Wheel Shape
Standard
Wheel Color
Black
Caster Wheel/Tread Material
Glass Filled Nylon
Wheel Color Family
Black
Core Color
Black
Wheel Diameter
5 in.
Durometer
60 Shore D
Wheel Width
2 in.
Frame Finish
Zinc Plated

Product Description

Medium-duty standard plate casters mount to the bottom of carts, dollies, platform trucks, tool boxes, storage racks, and other industrial equipment that will be moved manually at moderate speeds. They are suitable for transporting loads along smooth, flat surfaces in areas where the casters won't encounter shock loading, such as shops, docks, warehouses, waste-disposal areas, manufacturing plants, and other industrial settings. These casters have zinc-plated steel frames. Swivel versions of these casters have double ball swivel bearings, which are quieter and allow the caster to swivel more smoothly than roller bearings.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.

Item Barcode
9277544
  Name Item Description
Grainger Dropship Grainger Dropship 1NWN5 Swivel Plate Caster,Nylon,
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Swivel Plate Caster,Nylon,
