SPEEDAIRE

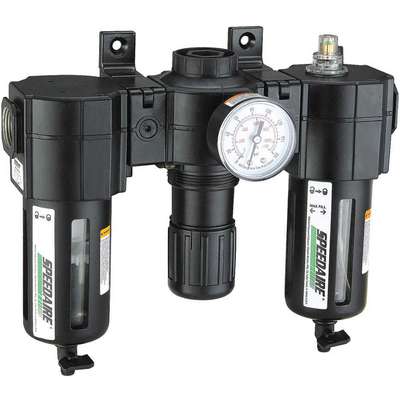

3/4" NPT Filter/Regulator/Lubricator with 5 to 150 psi Adjustment Range

Hover over image to magnify
Frl,3 Pcs,3/4" NPT,5 Micron,
Frl,3 Pcs,3/4" NPT,5 Micron,

#927742-6 | Pkg Qty: 1

$227.23 pkg | $227.23 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SPEEDAIRE
Package Quantity
1
Item
Filter/Regulator/Lubricator
Shipping Weight
6.96 lb.
Mfr. Part Number
7D745
General
Adjustment Range
5 to 150 psi
For Substance Type
Air
Adjustment Range - Air Treatment
5 to 150 psi
Includes
Guard, Mounting Brackets, Pressure Gauge
Air Inlet Type
NPT
Lubricator Bowl Capacity
7 oz
Air Outlet Size
3/4 in
Lubricator Bowl Guard Included
Yes
Air Outlet Type
NPT
Lubricator Bowl Material
Polycarbonate
Bowl Material - Air Treatment
Polycarbonate with Guard
Lubricator Type
Mist
Bowl Size - Air Treatment
7.0 oz
Lubricator Type Included
Mist
Connection Size - Air Treatment
3/4 in NPT
Max. Flow - Air Treatment
186 cfm
Filter Bowl Capacity
7 oz
Max. Flow Range - Air Treatment
151 to 200 cfm
Filter Bowl Guard Included
Yes
Max. Incoming Pressure - Air Treatment
150 psi
Filter Bowl Material
Plastic
Maximum Regulated Pressure
150 psi
Filter Rating - Air Treatment
5 micron
Minimum Regulated Pressure
5 psi
For Fluid Type
Air

Product Description

This 3-pc. unit combines filter, regulator, and Mist lubricator. Modular connector allows easy removal and swap out. Some assembly required. For filter, the CFM is based on 100 psig inlet and 5 psig pressure drop. For regulator, the CFM flow is measured with 100 psig inlet adjusted to a set pressure of 90 psig (while increasing flow) and a 15 psig drop. For lubricator, the CFM is based on 100 psig inlet and 5 psig pressure drop. Note: Polycarbonate bowls are not recommended for use in atmospheres containing chemicals such as acetone, benzene, carbon tetrachloride, ethylene dichloride, gasoline, toluene, and/or air compressor systems using synthetic fire-resistant lubricants.
