CHICAGO-LATROBE

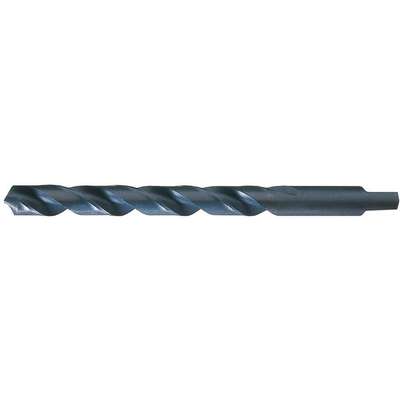

Jobber Drill Bit, 9/64", High Speed Steel, Steam Oxide, List Number 250AN

Hover over image to magnify
Jobber Drill Bit,Sz 9/64",Hss,
Jobber Drill Bit,Sz 9/64",Hss,
Jobber Drill Bit, 9/64", High Speed Steel, Steam Oxide, List Number 250AN Video
Jobber Drill Bit, 9/64", High Speed Steel, Steam Oxide, List Number 250AN Video

#927734 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Brand
CHICAGO-LATROBE
Helix Angle
28
Coolant Through
Non-Coolant Through
Item
Jobber Length Drill Bit
Cutting Direction
Right
Jobber Length Basic Material
High Speed Steel
Decimal Equivalent
0.1406
List Number
250AN
Depth x Diameter Ratio
4xD
Maximum Drilling Depth
9/16 in.
Drill Bit Dimension Type
Fractional Inch
Mfr. Part Number
47464
Drill Bit Finish
Black Oxide
Number of Flutes
2
Drill Bit Material
High Speed Steel
Overall Length
2-7/8 in.
Drill Bit Point Angle
118 deg.
Package Quantity
1
Drill Bit Size
9/64 in.
Series
250AN
Drill Point Length
0.0422 in.
Shank Diameter
1/8 in.
Finish
Black Oxide
Shank Length
1-1/8 in.
Flute Length
1-3/4 in.
Shipping Weight
.01 lb.
Flute Type
Spiral
Spiral Direction
Right Hand
Grade
General Purpose
General
Application
Carbon Steel, Alloy Steel, Cast Iron, Use with Positive Split Sleeve Drivers
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
General Purpose
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, P
Drill Bit Point Type
Conventional Point
Shank Dia.
1/8 in
Drill Diameter Tolerance
+0.0000 in /-0.0007 in
Shank Type - Machining
Tang Shank
Drill Length Class
Jobber Length
Standards
ANSI
Finish - Machining
Black Oxide

Product Description

The black-oxide finish on these drill bits retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece. These drill bits have a shank with a tang that prevents the bits from slipping in a drill chuck. Tang-shank drill bits can be securely inserted and removed from a compatible chuck without using tools, reducing downtime.
