PARKER

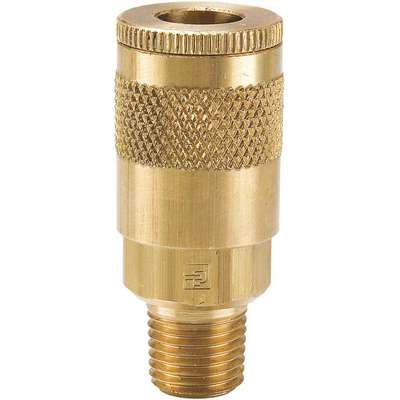

Quick Connect Hose Coupling: 1/4 in Body Size, 1/8 in Hose Fitting Size, 1/8"-27 Thread Size

Hover over image to magnify
Coupler Body,Brass,Mnpt,1/8 In.
PI_Asset_1371711
Coupler Body,Brass,Mnpt,1/8 In.
PI_Asset_1371711

#927715-6 | Pkg Qty: 1

$28.56 pkg | $28.56 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
PARKER
Package Quantity
1
Item
Quick Connect Hose Coupling
Quick Connect Coupling Interchange
Tru-Flate Automotive
Mfr. Part Number
B12A
Shipping Weight
.2 lb.
General
Barbed
No
Material - Quick Connect Air Couplings
Brass
Body Size - Quick Connect Air Couplings
1/4 in
Max. Air Flow (SCFM)
25
Coupling Component
Socket
Max. Outside Dia.
29/32 in
Coupling Locking Type
Sleeve
Max. Pressure - Quick Connect Air Couplings
300 psi
Features
Sleeve Type
Max. Working Pressure @ 70 F
300 psi
Hose Connection - Quick Connect Air Couplings
(M)NPT
Pipe Size - Quick Connect Air Couplings
1/8"
Hose Fitting Gender
Male
Product Grouping - Quick Connect Air Couplings
Quick Coupler Body
Includes Valve
Yes
Seals - Quick Connect Air Couplings
Nitrile
Interchange Type - Quick Connect Air Couplings
Tru-Flate-Automotive

Product Description

Tru-Flate automotive brass quick-connect air coupling bodies are the female end of coupling sets. Also called sockets, they accept coupling plugs (nipple or male ends) to connect tools to air, water, or fluid lines. High-flow couplings increase flow for greater tool efficiency, reduce pressure drop, and decrease air costs. Brass is a strong, highly conductive metal that resists corrosion and maintains durability at high temperatures. Brass is softer than other metal plugs and sockets for better connections and compatibility with copper or zinc piping.
