QUICK CABLE

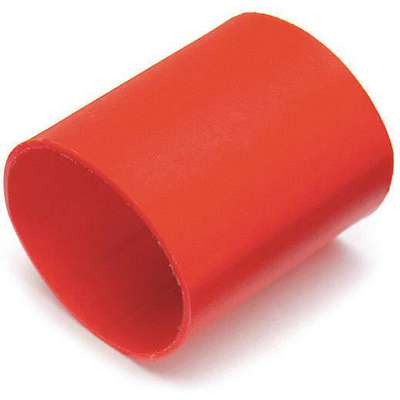

Quick Cable 1-1/2" Heavy Wall Heat Shrink Tubing Cross-Linked Polyolefin, Shrink Ratio 3:1
Hover over image to magnify
#927656-1 | Pkg Qty: 10
$8.70 pkg | $0.87 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
QUICK CABLE
Pack Quantity
10
Cable Range
1/0 to 6/0 (250mcm)
Shipping Weight
.1 lb.
Color Family
Red
Shrink Ratio
1899-12-31 03:01:00
Dielectric Strength
600 V
Shrink Temperature
257F
Flame Retardant
No
Shrink Tubing Adhesive Lined
No
Heat Shrink Tubing Shrink Ratio
3:1 Shrink Ratio
Shrink Tubing Inside Diameter Before Shrinking
1.125 in.
Inside Diameter After Shrinking
0.375 in.
Shrink Tubing Length
1.5 in.
Inside Diameter Before Shrinking
1.125 in.
Shrink Tubing Material
Cross-Linked Polyolefin
Inside Diameter Expanded Pre-Shrink
1-1/8 in.
Shrink Tubing Type
Heat Shrink Tubing
Item
Heat Shrink Tubing
Shrink Tubing Usable Temperature Range
-67 to 230F
Length
1-1/2 in.
Temperature Range
-67 deg. F to 230 deg. F
Material
Cross-Linked Polyolefin with Adhesive
Tube Material
Cross-Linked Polyolefin
Material of Construction
Cross-Linked Polyolefin
Use Shrink Tubing With Wire Size
1/0 AWG to 250 kcmil
Maximum Voltage
600 V
Wall Thickness After Shrinking
0.125 in.
Mfr. Part Number
5616-360-010R
Wall Type
Heavy Wall
Minimum Shrink Temperature
257F
Wire Range
1/0 to 250 kcmil
General
Adhesive Lined
Yes
Shrink Tubing Properties
Abrasion Resistant
Features
Withstands Severe Mechanical Requirements
Shrink Tubing Wall Thickness After Shrinking
0.125 in
I.D. After Shrinking
0.38 in
Standards
UL
I.D. Before Shrinking
1.13 in
Tubing Flexibility
Flexible
Package Style
Individual Pieces
Tubing Wall Type
Heavy Wall
Shrink Tubing I.D. Before Shrinking
1.125 in
Use With Wire Size
1/0 AWG to 250 MCM
Product Description
This heavy duty adhesive-lined heat shrink tubing provides corrosion resistance and is color-coded, so it's typically used to protect and identify battery connectors. It covers the connectors and is heated to shrink the tubing and seal the adhesive.
Expertly Selected Product Pairings
Item Barcode
Shrink Tubing,1.125in Id,RD,1-
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2FFZ3 | Shrink Tubing,1. |
 | UNSPSC CODES | 39121409 | |
 | VMRS (ATA) CODES | 053-006-009 | Shrink Tubing,1. |
