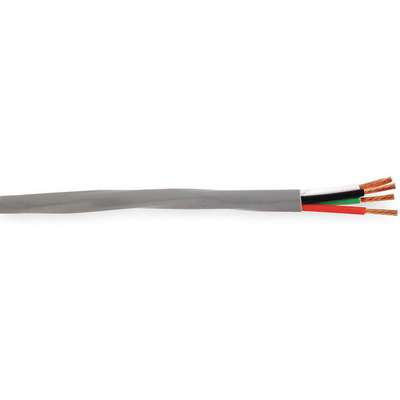

General Cable Unshielded Communication Cable, 1000 ft. Length, Gray Jacket Color, Conductors: 7 (0 Pair)
Hover over image to magnify
#927653-9 | Pkg Qty: 1
$1,396.30 pkg | $1,396.30 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
GENERAL CABLE
Number of Conductors
7
Cable Type
Unshielded
Pack Quantity
1
Capacitance
28.0 pF/ft
Package Type
Reel in a Box
Color Family
Gray
Shielded
No
Communication Cable Application
Audio Systems, Computer Systems, Control Systems
Shielded/Unshielded
Unshielded
Conductor Size
20 AWG
Shielding Material
None
Conductor Type
Stranded Copper
Shipping Weight
18.3 lb.
Facing Material
Conductors
Solid / Stranded
Stranded
Insulation
Premium-Grade, Color-Coded PVC (UL1007)
Spool Length
1000 ft.
Insulation Material
Premium-Grade, Color-Coded PVC (UL1007)
Spool/Coil Length
1000 ft.
Item
Communication Cable
Stranding
2022-07-28
Jacket Color
Gray
Subcategory
Fire Alarm/Life Safety/Security
Jacket Color Family
Gray
Temperature Range
-4 deg. F to 176 deg. F
Jacket Material
PVC
Total Number of Conductors
7 (0 Pair)
Length
1000 ft.
Voltage
300
Mfr. Part Number
C6356A.41.10
Wire Size
20 AWG
NEC Article
800
Wire/Cable Jacket Material
PVC
NEC Article/Type
800 CM
Wire/Cable Size
20 AWG
Nominal Outside Diameter
0.275 in.
General
Application
Public Address Systems, Intercoms, Internal Telephones, Remote Control Circuits, Suitable for EIA RS-232 Applications, Suggested Voltage Rating 300 volts
Package Type - Data Cable
Reel in a Box
Application - Communication Cable
Audio Systems, Computer Systems, Control Systems
Shielded / Unshielded
Unshielded
Cable Sub-Category
Fire Alarm/Life Safety/Security
Standards
NEC Article 800 Type CM (UL: 75░C), UL Style 2464 (UL: 80░C, 300V), UL Style 2576 (UL: 80?C, 150V), CSA CMG (CSA: 60░C), RoHS Compliant Directive 2002/95/EC, Passes CSA CMG Flame Test
Conductor Size - Data Cable
20 AWG
Total Number of Conductors - Data Cable
7 (0 Pair)
Fire Rating - Data Cable
Commercial
Vertical Tray Flame Test
Meets UL 70,000 BTU
Jacket Material - Wire and Cable
PVC
Wire Size - Wire and Cable
20 AWG
NEC Article and Type
800 CM
Product Description
This multi-conductor 20 AWG communication cable is ideal for fire alarm, security system or intercom installation.
