WILKERSON

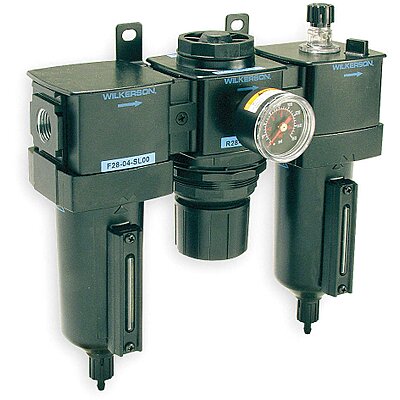

3/8" NPT Filter/Regulator/Lubricator with 0 to 125 psi Adjustment Range

Hover over image to magnify
Frl,3 Pcs,3/8" NPT,5 Micron,95
Frl,3 Pcs,3/8" NPT,5 Micron,95

#927591 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Frl,3 Pcs,3/8" NPT,5 Micron,
$316.70 pkg | $316.70 ea
Item: 935689-7
Pkg Qty: 1

Technical Specifications

Key Specifications
Brand
WILKERSON
Pack Quantity
1
Item
Filter/Regulator/Lubricator
Shipping Weight
10 lb.
Mfr. Part Number
C28-03-FLG0
General
Adjustment Range
0 to 125 psi
Filter Rating - Air Treatment
5 micron
Adjustment Range - Air Treatment
0 to 125 psi
Gauge Port Size
1/4 in NPT
Bowl Material - Air Treatment
Metal with Sight Glass
Max. Flow - Air Treatment
95 cfm
Bowl Size - Air Treatment
6.1 oz
Max. Flow Range - Air Treatment
71 to 100 cfm
Connection Size - Air Treatment
3/8 in NPT
Max. Incoming Pressure - Air Treatment
250 psi
Filter Rating (Microns)
5
Number of Pieces - Air Treatment
3

Product Description

The 3-pc. design integrates filter, regulator, and lubricator into a single unit. Ready-to-mount assembly comes with a pressure gauge and modulator T-bracket/joiner assembly. For the Max. Flow, the CFM is measured with 100 psig inlet adjusted to a set pressure of 90 psig and a 15 psig pressure drop.
