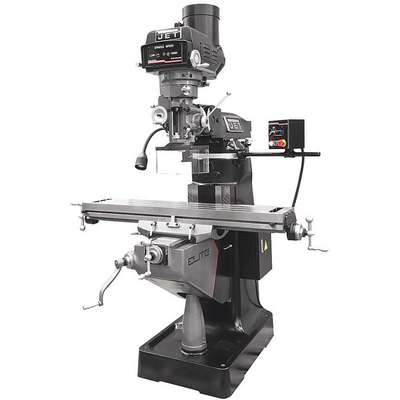

Variable Speed Milling Machine, Variable Speed R8, 9 x 49á Table Size (In.)

Hover over image to magnify
Var Speed Mill Machine,3Ph,3HP,
PI_Asset_972376
PI_Asset_972377
PI_Asset_972378
PI_Asset_972379
PI_Asset_972380
PI_Asset_972381
PI_Asset_972382
PI_Asset_972383
Var Speed Mill Machine,3Ph,3HP,
PI_Asset_972376
PI_Asset_972377
PI_Asset_972378
PI_Asset_972379
PI_Asset_972380
PI_Asset_972381
PI_Asset_972382
PI_Asset_972383

#927569-7 | Pkg Qty: 1

$29,243.02 pkg | $29,243.02 ea
This item requires special shipping, additional charges may apply.
Item Number 927569-7
Scanner Description Var Speed Mill Machine,3Ph,3HP,
Inventory Status Drop Ship Item
Weight 2450 lb
Brand JET ELITE

Technical Specifications

Brand
JET ELITE
Number of T-Slots
3
Capacity
750 lb.
Overall Depth
68 in.
Chuck Size
Varies
Overall Height
84 in.
Cross Travel
12 in.
Overall Length
63 in.
Features
Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry leading spindle taper runout of 0.00012 in., Chromium Molybdenum spindle is fully hardened and is precisely ground to maintain strict tolerances, Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy, The Y and Z-Axis ways are hand scraped for greater oil retention and smooth movements, Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load, Mounted control box with emergency stop button, 3 year warranty, 30 point inspection, CSA/CUS certified electrical components
Overall Width
63 in.
Head
Moves 90 Right and Left and 45 Forward and Back
Pack Quantity
1
Horsepower
3
Phase
3
Hz
60
RPM
60 to 4500
Includes
3-Axis ACU-RITE 200S (Quill) DRO and Servo X-Axis Powerfeed
Spindle
R-8
Mfr. Part Number
894187
Spindle Taper
R-8
Motor HP
3
Swing
Adjustable
Motor Type
TEFC
Type
Variable Speed R8
Number of Spindle Speeds
Variable
Voltage
230/460 V

Product Description

Knee/Column Milling Machine, Table Length 9 in, Table Width 49 in, 3, Table Load Capacity 550 lb, Phase 3, Voltage 230/460V, Longitudinal Travel 36 in, Cross Travel 12 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,500 RPM

Item Barcode
9275697
  Name Item Description
Grainger Dropship Grainger Dropship 20UT68 Var Speed Mill Machine,
UNSPSC CODES UNSPSC CODES 23101513
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Var Speed Mill Machine,
