DAYTON

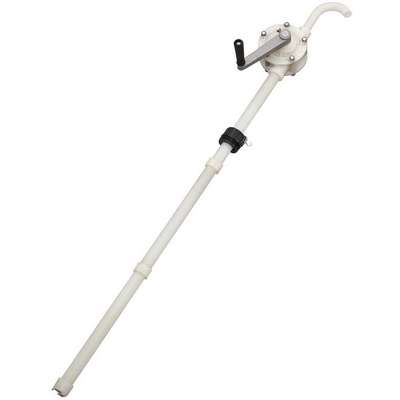

Hand Operated Drum Pump, Rotary, Basic Pump with Spout, Max. Head - Pumps 16 ft

Hover over image to magnify
Hand Drum Pump,Rotary,Pvdf,1
Hand Drum Pump,Rotary,Pvdf,1

#927568-1 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Action Type
Rotary
Maximum Head
16 ft.
Adapter Diameter
2 in.
Maximum Liquid Temperature
140°F
Adapter Material
Polypropylene
Maximum Viscosity
2000
Adapter Type
2" MNPT
Metered
No
Brand
DAYTON
Mfr. Part Number
38Y791
Discharge Tube Length
12"
Mfr. Warranty Length
1 yr.
Discharge Tube Outlet ID Size
27/32"
Outlet Size
1" OD
Discharge Tube Outlet Outside Diameter
1"
Overall Length
53 in.
Discharge Tubing Material
PVDF
Package Quantity
1
For Use On
5, 15, 30, and 55 gal. Drums and Barrels
Power Source
Hand Operated
GPM
12 @ 135 RPM
Seal Material
PTFE
Gasket Material
Viton
Shipping Weight
4.55 lb.
Hand Operated Pump Action Type
Hand Operated Rotary Pumps
Suction Tube Outlet Outside Diameter
1-1/2 in.
Housing Material
PVDF
Suction Tube Type
3-Piece Sections
Inlet Size
1-1/4"
Type
Rotary Action
Item
Hand Operated Drum Pump
Wetted Materials
304 Stainless Steel, PTFE, PVDF
Maximum GPM for Oil
10 @ 135 RPM
pH Range
1 to 10
Maximum GPM for Water
12 @ 135 RPM
General
Application
Acids, Alkalis
Includes Bung Adapter
Yes
Bung Connection Dia.
2 in
Includes Discharge Hose
No
Compatible Chemicals
Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, DEF, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl (Isopropanol), Kerosene, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%)
Includes Nozzle
No
Discharge Tube Outlet ID
27/32 in
Includes Spout
Yes
Discharge Tube Outlet OD
1 in
Includes Suction Tube
Yes
Features
Good Chemical Resistance
Max. Flow Rate
12 gpm @ 120 strokes
For Container Size
15 gal, 30 gal, 55 gal
Max. Fluid Temp.
140 Degrees F
For Container Type
Bucket, Drum, Pail
Max. Head - Pumps
16 ft
For Media Type
Antifreeze, Automatic Transmission Fluid, Bleach, Brake Fluid, DEF, Diesel Fuel, Ethanol, Gasoline, Isopropanol, Kerosene, Ketones, Water
Pump Package Type
Basic Pump with Spout
For Use With
Acids, Alkalis
Suction Tube OD
1 1/2 in
Housing Material - Pumps
PVDF

Product Description

Diesel exhaust fluid (DEF) hand drum pumps are used specifically with DEF to maintain purity when filling the reservoir of a diesel engine's Selective Catalytic Reduction (SCR) system. These pumps are certified to ISO standards that regulate the handling, transportation, and storage of DEF. They are used for dispensing and transferring small volumes of DEF when servicing late model trucks and SUVs as well as SCR-based stationary industrial systems that operate on diesel fuel.
