GF PIPING SYSTEMS

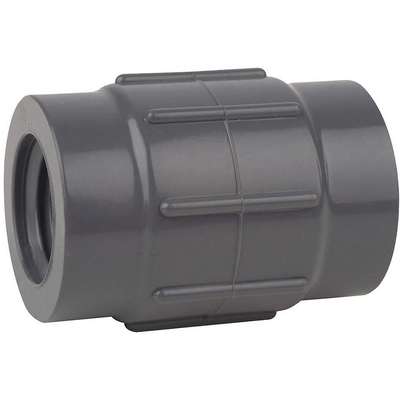

Schedule 80 CPVC Reducing Coupling, 1-1/2" x 1" Pipe Size, FNPT x FNPT Fitting Connection Type

Hover over image to magnify
Reducing Coupling,CPVC,80,1-1/
PI_Asset_1027524
Reducing Coupling,CPVC,80,1-1/
PI_Asset_1027524

#927548-4 | Pkg Qty: 1

$41.18 pkg | $41.18 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
GF PIPING SYSTEMS
Mfr. Part Number
9830-211
Color Family
Gray
Package Quantity
1
Item
Reducing Coupling
Shipping Weight
.25 lb.
General
Fitting Connection Type
FNPT x FNPT
Fitting Side B Type
NPT
Fitting Pipe Size
1 1/2 in x 1 in
For Pipe Outside Diameter
1 1/2 in
Fitting Side A Gender
Female
For Pipe Schedule
80
Fitting Side A Nominal Pipe Size
1 1/2 in
Gender
Female
Fitting Side A Outside Diameter
2 1/2 in
Low Lead Certified Standard
NSF 61
Fitting Side A Pipe Threading
11.5
Low Lead Compliance Level
Certified
Fitting Side A Type
NPT
Pipe Fitting Connection Type
Female NPT x Female NPT
Fitting Side B Gender
Female
Pipe Fitting Gender
Female x Female
Fitting Side B Nominal Pipe Size
1 in
Pipe Size - Pipe Fitting
1 1/2 in x 1 in
Fitting Side B Outside Diameter
1 13/16 in
Temp. Range
32 Degrees to 200 Degrees F
Fitting Side B Pipe Threading
11.5

Product Description

This lightweight, tough, and corrosion-resistant GF PIPING SYSTEMS reducing coupling is highly resistant to acids, alkalis, alcohols, and many other corrosive materials. Fitting is much lighter (about 1/6th as much as steel) to help speed and simplify handling during installation, plus it won’t corrode, pit, rust, scale, nor is it subject to electrolysis. Material is not affected by soil conditions if fitting is buried. For outdoor applications that are exposed to sunlight, 2 coats of white-colored, water-base latex paint provide additional protection.

Item Barcode
9275484
Reducing Coupling,CPVC,80,1-1/
 NameItemDescription
Grainger DropshipGrainger Dropship22JZ52Reducing Coupling,
UNSPSC CODESUNSPSC CODES40173609
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Reducing Coupling,
