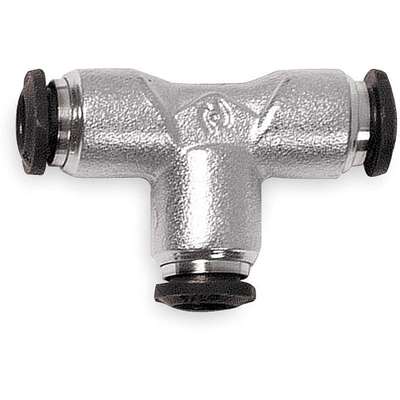

Union Tee: Nickel Plated Brass, Push-to-Connect x Push-to-Connect x Push-to-Connect, Metric, 5 PK
Hover over image to magnify
#927504 | Pkg Qty: 5
$53.70 pkg
| $10.74 ea
Technical Specifications
Key Specifications
Basic Material
Metal
Material of Construction
Nickel Plated Brass
Body Material
Nickel Plated Brass
Maximum Pressure
250 psi
Brand
AIGNEP USA
Metal Detectable
Yes
Color Family
Silver
Pack Quantity
5
Connection Type
Tube
Pneumatics Fittings Sub-Category
Tees
Item
Union Tee
Shipping Weight
.28 lb.
General
Compatible Tube Material
Copper, Nylon, Polyethylene, Polyurethane
Fitting Side B Tube Outer Diameter
6 mm
End Connection Type
Push-to-Connect
Fitting Side C Connection Type
Push-to-Connect
Finish/Coating
Nickel Plated
Fitting Side C Tube Outer Diameter
6 mm
Fitting Body Material
Nickel-Plated Brass
For Tube OD
6 mm x 6 mm x 6 mm
Fitting Side A Connection Type
Push-to-Connect
For Tube Outside Diameter
6 mm
Fitting Side A Tube Outer Diameter
6 mm
Includes Pre-Applied Thread Sealant
No
Fitting Side B Connection Type
Push-to-Connect
Specific Fitting Shape
Tee
Product Description
Swift-Fit Universal Nickel-Plated Brass Push-To-Connect Fittings
- Max. pressure: 190 psi (fittings), 150 psi (valves) Temp. range: 0° to 200°F PTC fitting thread is compatible with NPTF, BSPP, and BSPT 1/8" to 3/8" and 3mm to 8mm tube fittings sold in pkg. of 5 1/2" and 10mm to 14mm tube fittings sold in pkg. of 3 Male threads on PTC fittings are compatible with both inch and metric female thread systems. Will not strip threads on either the fitting or the component. Reusable Buna thread seal allows for quick, low-profile installation. Quick Exhaust Valves feature a replaceable Buna piston. Check Valves have 2 psi cracking pressure. Inline Filters come with a 120 micron cleanable and replaceable filter.
Item Barcode
Union Tee,Brass,6mm Tube Sz,PK5
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 1WVC9 | Union Tee, Brass,6mm |
|
UNSPSC CODES | 40183103 | |
|
VMRS (ATA) CODES | 053-008-004 | Union Tee, Brass,6mm |
